G23 2G7 - CFL
CFL TC-S Dulux S 9W 840 G23
010588 | Manufacturer: Osram | EAN: 4050300010588 | MPN: DULUX-S-9-840
More info - Compact Fluorescent Lamp TC-S 9W 840 G23 2G7
Extremely economical and with a good quality of light, the Compact energy saving lamp TC-S Dulux S 9W 840 G23 is perfect for cost-effective creative illumination and decoration. Its extremely low profile design ensures it fits seamlessly into any space, while its long service life and improved maintenance make it a reliable choice. Ideal for offices, public buildings, shops, supermarkets and department stores, hotels and restaurants.
Nominal wattage 9 W
Rated wattage 9 W
Nominal luminous flux 570 lm
Rated luminous flux 570 lm
Color temperature 4000 K
Light color 840
Light color as per EN 12464-1 LUMILUX Cool White
Color rendering index Ra80…89
Luminous flux at 25 °C 600 lm
Rated LLMF at 4000 h 0.78
Rated LLMF at 6000 h 0.76
Rated LLMF at 8000 h 0.75
Luminance 2.8 cd/cm²
Color rendering group 1B

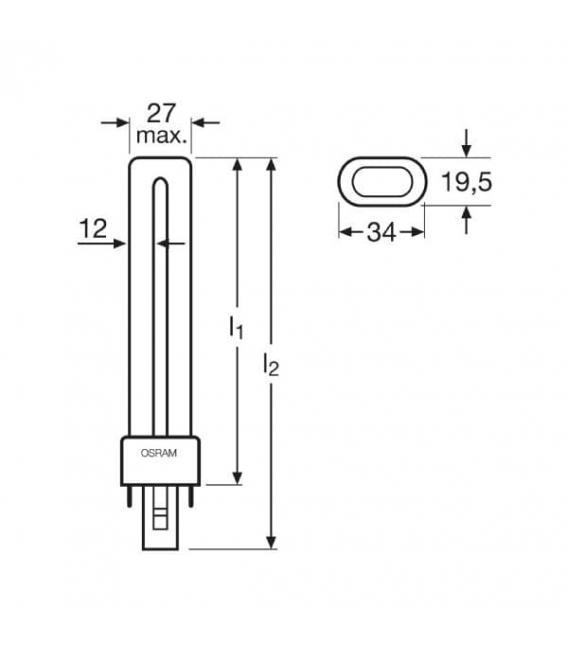

Overall length 167 mm
Tube diameter 12 mm
Length 168 mm
Length acc. to IEC standard 145 mm
Length with base excl. base pins/connection 144 mm
Rated ambient temp.w.max.luminous flux 25 °C
Nominal lamp life time 8000 h
Rated lamp life time 8000 h
Service life 6500 h
Rated lamp survival factor at 2000 h 0.98
Operation mode LLMF/LSF 50 Hz
Lifespan 10000 h
Base (standard designation) G23
Lamp mercury content 3 mg
Appropriate disposal acc. to WEEE Yes
Suitable for indoor Yes
Energy efficiency class A
Energy consumption 12 kWh/1000 h
Benefits
• Extremely economical
• Good quality of light
• Extremely low profile
• Long service life
• Improved maintenance
Areas of application
• Ideal for cost-effective creative illumination and decoration
• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants
