G23 2G7 - CFL
CFL Master PL-S 9W 830 4P
260932 | Manufacturer: Philips | EAN: 8711500260932 | MPN: 927936283011
More info - Master PL-S 9W 830 4P Compact Fluorescent Lamp G23 2G7
The Master PL-S 9W 830 4P is an energy-saving lamp that offers efficient and low-wattage lighting. With its original Philips-invented bridge technology, it provides optimal performance, delivering more light and higher efficacy compared to bended technology. Perfect for decorative and orientation purposes, this compact fluorescent lamp is a reliable choice for hotels, restaurants, theatres, homes, signs, corridors, security lighting , and orientation lighting.
Cap-Base 2G7
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 583 lm
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 73 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 435 -
Chromaticity Coordinate Y 401 -
Lamp Wattage 9 W
Lamp Voltage 60 V
Lamp Current 0.170 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 9 kWh

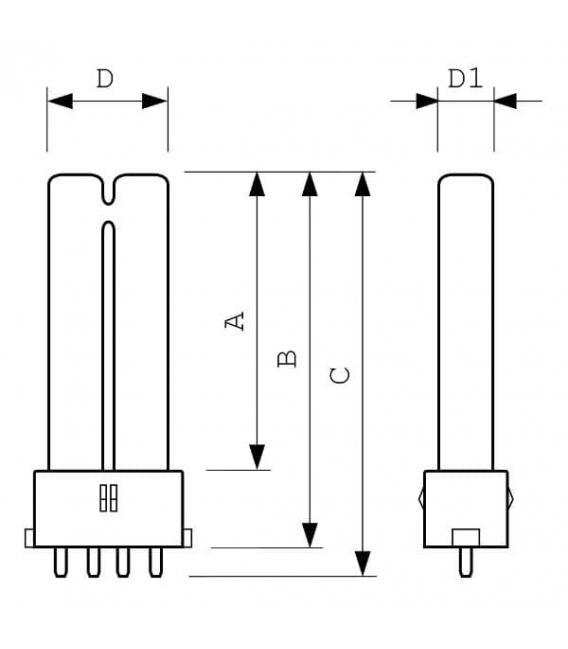

Base Face to Base Face A 128 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 151.1 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 4-pin base
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
