G23 2G7 - CFL
CFL Master PL-S 9W 827 2P
260796 | Manufacturer: Philips | EAN: 8711500260796 | MPN: 927936082711
More info - Master PL-S 9W 827 2P Compact Fluorescent Lamp
The Master PL-S 9W 827 2P is an energy-saving lamp that combines efficiency and performance. With its compact design, it's perfect for decorative and orientation purposes. Featuring Philips-invented bridge technology, this lamp provides more light and higher efficacy than traditional options. Upgrade your lighting with this low-wattage fluorescent lamp for optimal brightness and energy savings.
Cap-Base G23
Cap-Base Information 2P
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
Color Code 827 [CCT of 2700 K]
Color Rendering Index 82 Ra8
Color Designation Incandescent White
Color Temperature 2700 K
Luminous Flux EM 25 °C, Rated 583 lm
Luminous Flux EM 25 °C, Nominal 600 lm
Luminous Efficacy Rated EM 25 °C 67 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 455 -
Chromaticity Coordinate Y 417 -
Lamp Wattage 9 W
Lamp Voltage 60 V
Lamp Current 0.170 A
Dimmable No
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 11 kWh

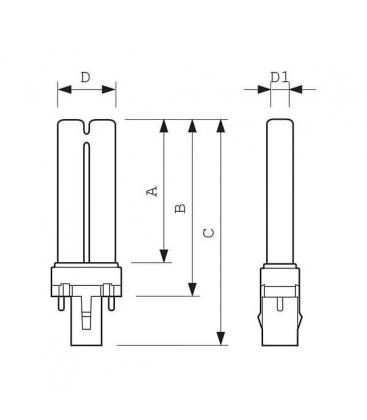

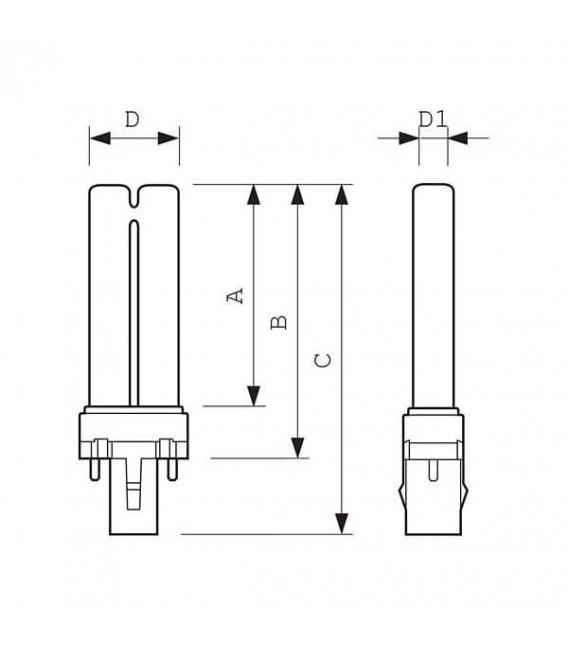

Base Face to Base Face A 129 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 167 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
Applications
• Designed for use in hotels, restaurants, theatres and homes
• Suitable for use in signs, corridors, security and orientation lighting
