G24 - CFL
CFL Master PL-C 18W 830 2P xtra
898951 | Manufacturer: Philips | EAN: 8711500898951 | MPN: 927906483014
More info - Master PL-C 18W 830 2P xtra G24 Compact Fluorescent Lamp
The Master PL-C Xtra lamp offers exceptional energy savings and a longer lifespan compared to standard lamps. With Philips' innovative bridge technology, this compact fluorescent lamp delivers more light and higher efficacy. Perfect for general downlights in retail, hospitality, and office settings, it ensures optimal performance with its 2-pin design. Say goodbye to frequent replacements and enjoy the benefits of long-lasting illumination.

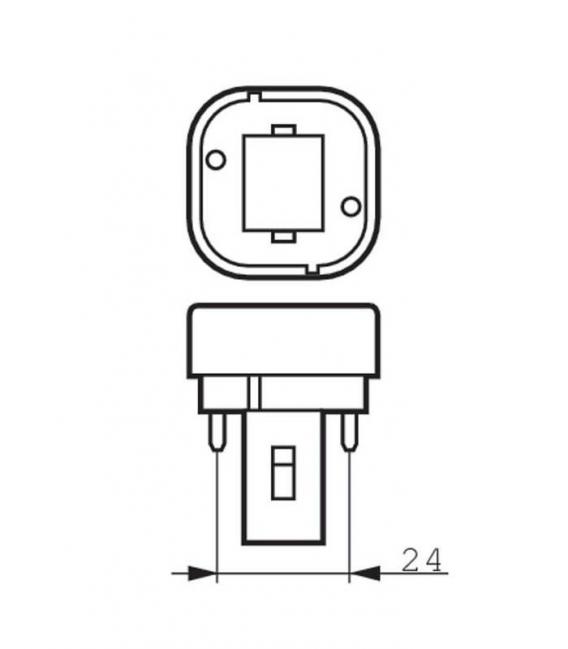

Cap-Base G24d-2
Life to 10% failures EM 12000 h
Life to 50% failures EM 16000 h
LSF HF Preheat 2000 h Rated,3h 99%
LSF 4000 hRated 98%
LSF 6000 hRated 97%
Color Code 830 [ CCT of 3000 K]
Luminous Flux 1200 lm
Luminous Flux (Rated) 1200 lm
Color Designation Warm White (WW)
Chromaticity Coordinate X 435
Chromaticity Coordinate Y 400
Correlated Color Temperature 3000 K
Luminous Efficacy (rated) 67 lm/W
Color Rendering Index 82
LLMF 2000 h Rated 92%
LLMF 4000 hRated 87%
Power (Rated) 17.9 W
Lamp Current 0.220 A
Design Temperature 28 °C
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 22 kWh

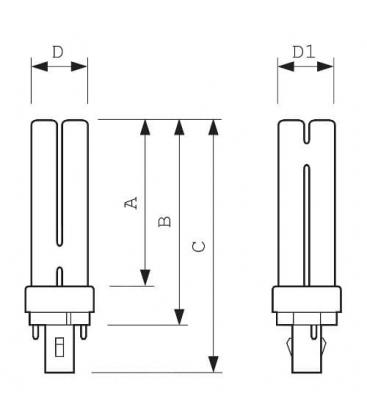

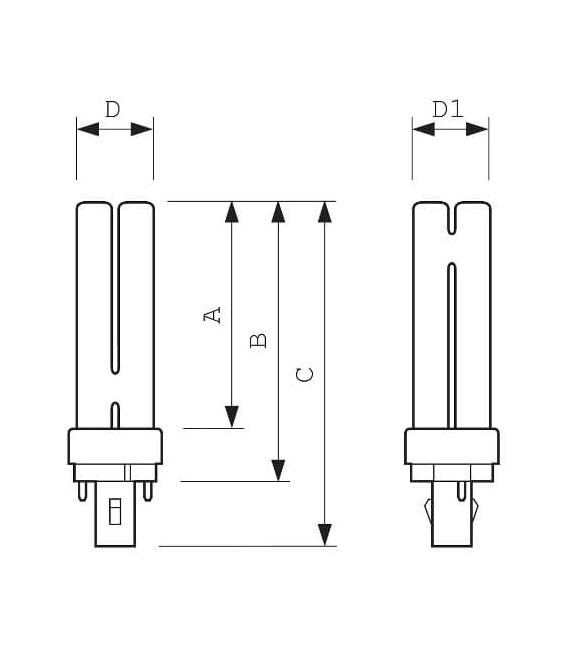

Base Face to Base Face A 109.7 (max) mm
Insertion Length B 128 (max) mm
Overall Length C 150.4 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
This is an efficient compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. MASTER PL-C Xtra lamps furthermore provide significantly lower operating costs thanks to their lifetime, which is more than double that of a standard MASTER PL-C lamp, and their very low early failure rate. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.
Benefits
• Less hassle and lower maintenance costs and facilitating the change from spot to group replacement
Benefits
• Optimal light performance for long operation per switch-on
• Multiple light color choice
• Good color rendering (CRI > 80)
Features
• 2-pin base with a housing incorporating the special instant starter
• Fluorescent tri-phosphor technology
• Extra long lifetime and fewer early failures
• Low light depreciation over lamp life
Applications
• Designed for general or supplementary lighting in professional environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
• Suitable for use in applications where maintenance costs are high (high ceilings, difficult to reach): department stores, supermarkets, warehouses, production halls and public areas
