G24 - CFL
CFL TC-D Dulux D 18W 865
487120 | Manufacturer: Osram | EAN: 4050300487120 | MPN: DULUX-D-18-865
More info - Compact Fluorescent Lamp TC-D Dulux D 18W 865 G24 Variant
The Compact energy saving lamp TC-D Dulux D 18W 865 is perfect for shallow recesses and miniature luminaires. It emits a warm light with excellent color rendering, making it ideal for various applications such as offices, shops, hotels, and more. With its economical nature and long service life, this lamp offers improved maintenance and an impressive luminous flux.
Nominal wattage 18 W
Nominal voltage 100 V
Rated lamp efficacy (standard condition) 63 lm/W
Rated wattage 18 W
Energy consumption 23 kWh/1000 h
Nominal luminous flux 1130 lm
Color temperature 6500 K
Rated luminous flux 1130 lm
Luminous flux at 25 °C 1140 lm
Light color 865
Light color as per EN 12464-1 LUMILUX Cool Daylight
Rated LLMF at 2000 h 0.77
Luminance 4 cd/cm²

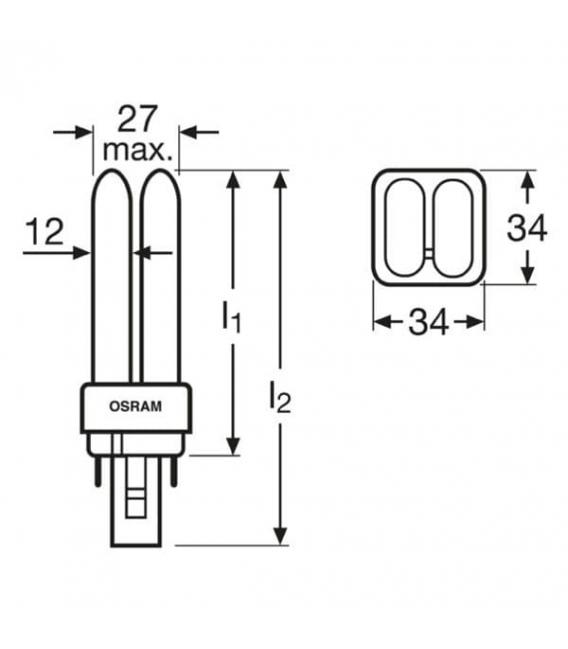

Overall length 153 mm
Tube diameter 12 mm
Length 153 mm
Length acc. to IEC standard 140 mm
Length with base excl. base pins/connection 130 mm
Lamp mercury content 2.5 mg
Rated ambient temp.w.max.luminous flux 25 °C
Nominal lamp life time 10000 h
Service life 6500 h
Rated lamp survival factor at 2000 h 0.99
Operation mode LLMF/LSF 50 Hz
Lifespan 10000 h
Rated lamp life time 10000 h
Base (standard designation) G24d-2
Appropriate disposal acc. to WEEE Yes
Footnote used only for product Suitable only for operation with 0.22 A control gear
Suitable for indoor Yes
Energy efficiency class A
Benefits
• Extremely economical
• Good quality of light
• Excellent luminous flux
• Long service life
• Improved maintenance
Areas of application
• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants
• Industry
