CFL Master PL-C 26W 827 2P

Cap-Base G24d-3
Life to 10% failures EM 6500 h
Life to 50% failures EM 10000 h
LSF HF Preheat 2000 h Rated,3h 99%
Color Code 827 [CCT of 2700 K]
Color Rendering Index 83 Ra8
Color Designation Incandescent White
Color Temperature 2700 K
Luminous Flux EM 25 °C, Nominal 1800 lm
Luminous Flux EL 25 °C, Nominal 1800 lm
Luminous Efficacy Rated EM 25 °C 68 lm/W
Design Temperature 28 C
Chromaticity Coordinate X 463 -
Chromaticity Coordinate Y 420 -
Lamp Wattage 26 W
Lamp Wattage EM 25 °C, Nominal 26 W
Lamp Voltage EM 25 °C 100 V
Lamp Current EM 25 °C 0.335 A
Dimmable No
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 32 kWh

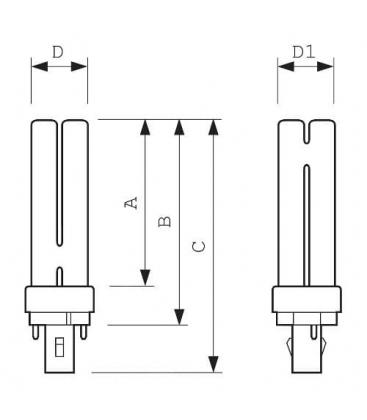

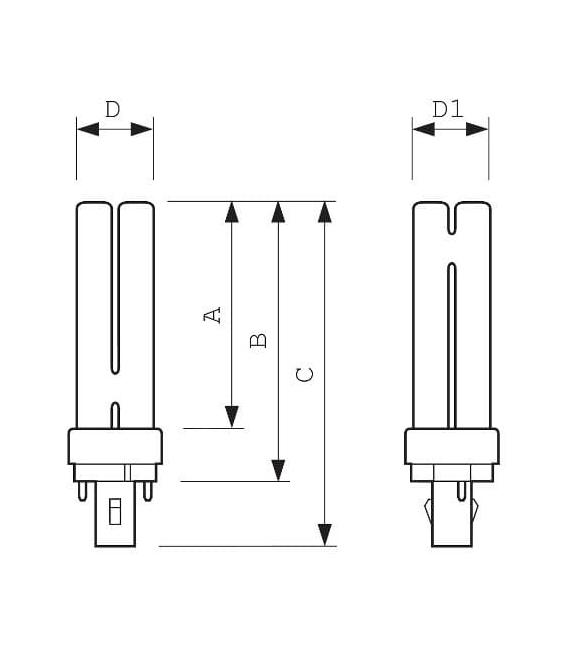

Base Face to Base Face A 130.7 (max) mm
Insertion Length B 149 (max) mm
Overall Length C 171.4 (max) mm
Diameter D 27.1 (max) mm
Diameter D1 27.1 (max) mm
MASTER PL-C is an efficient medium-wattage compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applicatiMASTER PL-C is an efficient medium-wattage compact fluorescent lamp, typically used in general downlights for retail, hospitality and office applications. The original Philips-invented bridge technology guarantees optimum performance in the application, enabling more light and higher efficacy than the bended technology. The 2-pin version is designed for operation on electromagnetic gear and is provided with a plug-in/pull-out lamp base.

Features
• 2-pin base with a housing incorporating the special instant starter and capacitor
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life

Applications
• Designed for general or supplementary lighting in professional or home environments
• Recessed or surface-mounted downlighters, wall units, table lamps and pendant lamps
