G24 – for Commercial and Residential

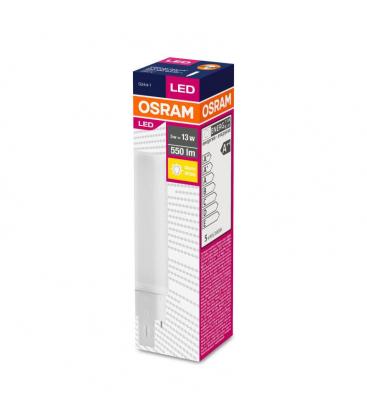

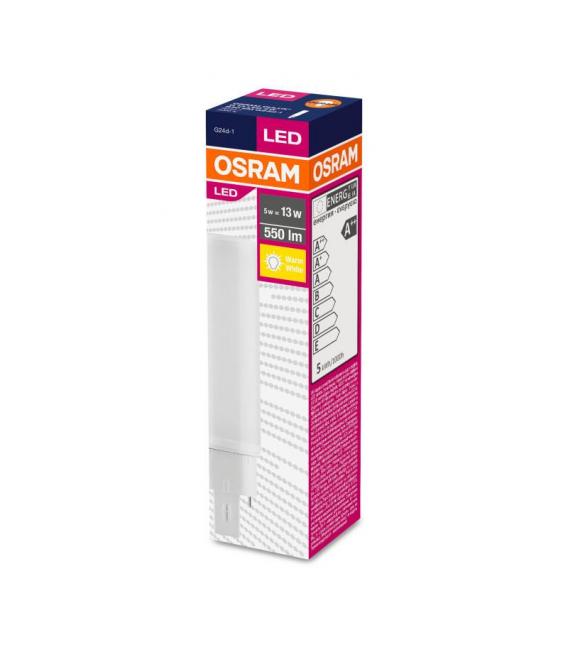

Dulux D LED EM 13 5W 830 2P G24d 1
135086 | Manufacturer: Osram | EAN: 4058075135086 | MPN: DULUX-D13LED-5W-3000K
More info - LED Lamp Dulux D EM 5W 830 G24d 1 G24
The LED lamp Dulux D LED EM 13 5W 830 2P G24d 1 is a high-quality, energy-efficient lighting solution. With a rated wattage of 5W and a nominal voltage of 220-240V, this lamp provides bright and warm white light with a color temperature of 3000K. Its compact design allows for easy installation and replacement in various settings such as supermarkets, hotels, and outdoor applications (in suitable luminaires). Enjoy the benefits of low energy consumption and long lifetime (up to 30,000 hours) with this reliable LED lamp.
Rated wattage 5 W
Nominal wattage 5 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Power factor λ > 0.70
Nominal luminous flux 550 lm
Rated luminous flux 550 lm
Rated color temperature 3000 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Luminous flux 550 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Color rendering index Ra≥80
Warm-up time (60%) < 0.5s
Starting time < 0.5s

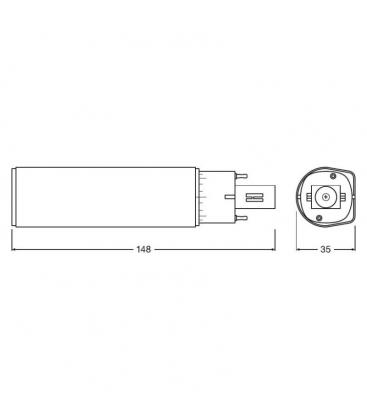

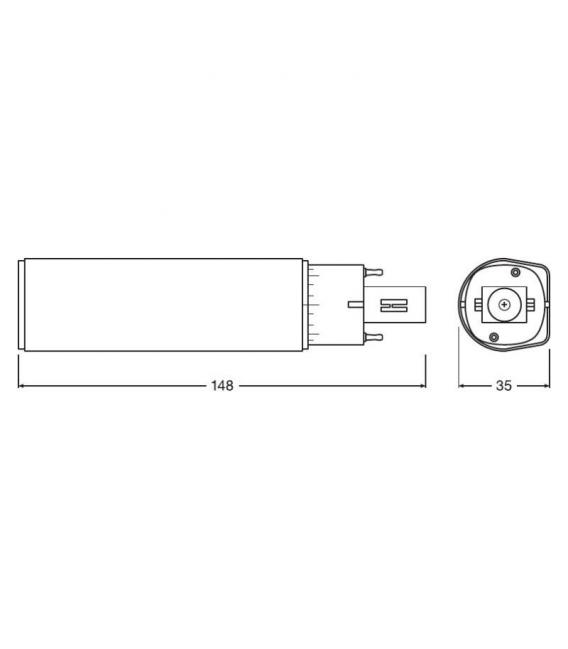

Overall length 148 mm
Diameter 35 mm
Length 148 mm
Ambient temperature range –20…+35 °C
Maximum temperature at tc test point 85 °C
Nominal lamp life time 30000 h
Rated lamp life time 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service life 0.70
Base (standard designation) G24d-1
Mercury content 0 mg
Mercury-free Yes
Design / version Frosted
Show WEEE picto Yes
Dimmable No
Energy efficiency class A++
Energy consumption 5 kWh/1000 h
Features
• Led replacement for conventional lamps for use in CCG luminaires
• Type of protection: IP20
• Lifetime: up to 30000 h
• Single-ended two-pin plug-in G24d base
Benefits
• Quick, simple and safe replacement without rewiring
• Low energy consumption
• Easy relamping thanks to compact design
Applications
• General illumination within ambient temperatures from –20...+35 °C
• Supermarkets and department stores
• Walkways and corridors
• Hotels, restaurants
• Outdoor applications only in suitable luminaires
SAFETY ADVICE
Do not use with closed luminaire
