Dulux D-E LED HF 26 10W 830 4P G24q 3

Rated wattage 10 W
Nominal wattage 10 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Power factor λ > 0.90
Nominal luminous flux 920 lm
Rated luminous flux 920 lm
Rated color temperature 3000 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Luminous flux 920 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Color rendering index Ra≥80
Warm-up time (60%) < 0.5s
Starting time < 0.5s

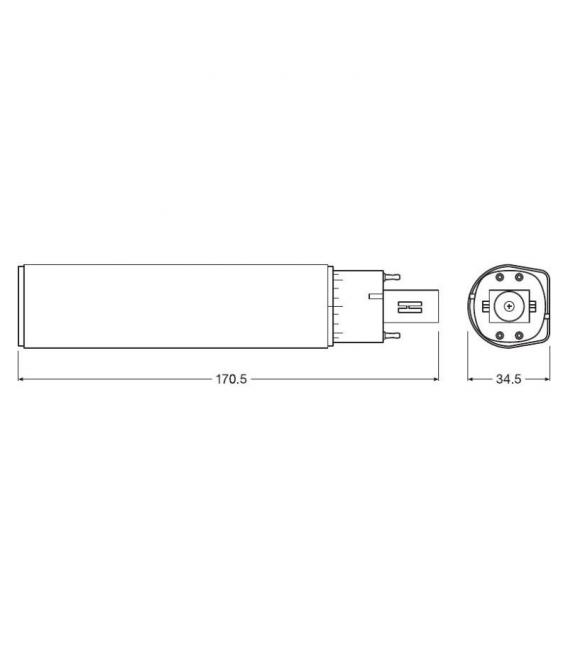

Overall length 171 mm
Diameter 35 mm
Length 171 mm
Maximum temperature at tc test point 65 °C
Nominal lamp life time 30000 h
Rated lamp life time 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service life 0.70
Base (standard designation) G24q-3
Mercury content 0 mg
Mercury-free Yes
Design / version Frosted
Show WEEE picto Yes
Dimmable No
Energy efficiency class A+
Energy consumption 10 kWh/1000 h

Benefits
• Quick, simple and safe replacement
• Low energy consumption

Applications
• Supermarkets and department stores
• Walkways and corridors
• Hotels, restaurants
• Outdoor applications only in suitable luminaires

Features
• Led replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
• Single-ended four-pin plug-in G24q base
• Type of protection: IP20
• Lifetime: up to 30000 h
• Mercury-free lamps

SAFETY ADVICE
• Only suitable for temperatures of up to 35 °C inside of the luminaire.
• Always check the latest update of the compatibility list available on Hyperlink>
• Not suitable for operation with conventional control gear

List of electronic control gears (ECG) that have been tested and proven to be compatible with DULUX D/E LED lamps.

Download Ballast compatibility list of OSRAM DULUX D/E LED

General safety informations
