G4 – for Decorative Fixtures

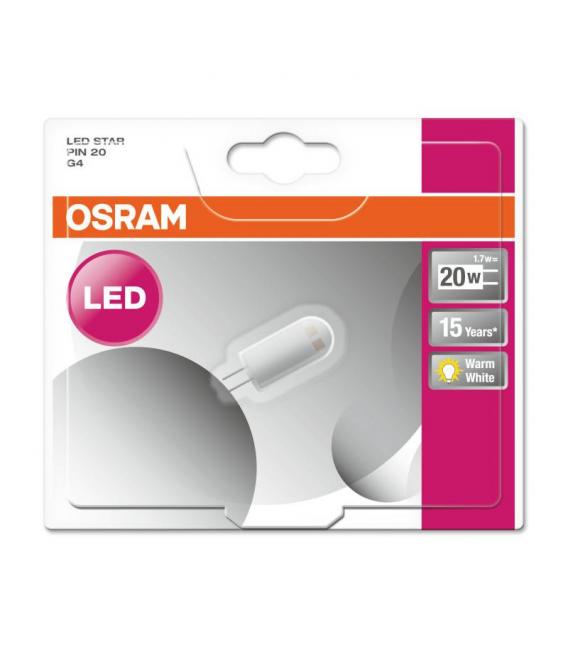

Star Pin 20 1.7W 12V 827 FR G4
964365 | Manufacturer: Osram | EAN: 4052899964365 | MPN: LEDSPIN20-1,7W/
Product out of stock. Delivery may be delayed.
More info - LED Lamp Star Pin 20 1.7W 12V 827 FR G4
The LED lamp Star Pin 20 1.7W 12V 827 FR G4 is a high-quality, energy-efficient lighting solution. With a long lifetime of up to 15000 hours and low energy consumption, it's perfect for decorative and free-burning applications. This mercury-free lamp is an ideal choice for atmospheric accent lighting in homes, shops, hotels, restaurants, foyers, offices, and outdoor areas (when used with suitable luminaires). Upgrade to this LED alternative to conventional low voltage lamps and enjoy the benefits of its three-year guarantee.
Rated wattage 1.70 W
Nominal wattage 1.70 W
Nominal voltage 12 V
Power factor λ > 0.50
Claimed equiv. conventional lamp power 20 W
Nominal luminous flux 200 lm
Rated luminous flux 200 lm
Rated color temperature 2700 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Luminous flux 200 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Color rendering index Ra≥80
Warm-up time (60%) < 0.5s
Starting time < 0.5s

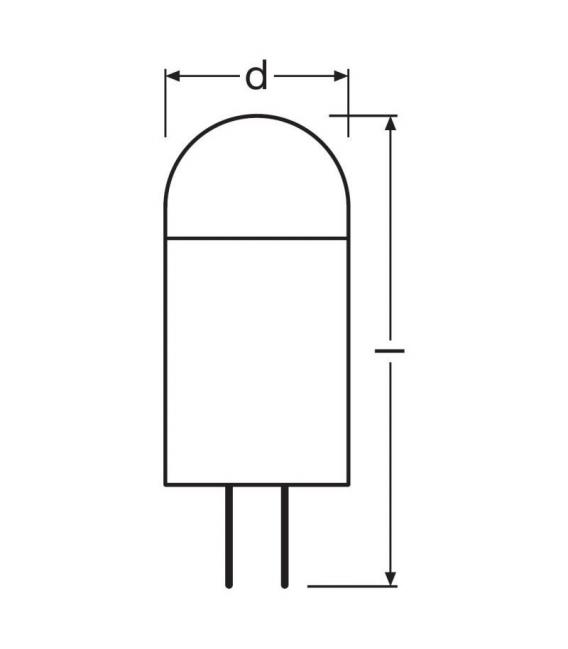

Overall length 36 mm
Diameter 14 mm
Outer bulb T14
Length 36 mm
Maximum temperature at tc test point 80 °C
Nominal lamp life time 15000 h
Rated lamp life time 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service life 0.70
Base (standard designation) G4
Mercury content 0 mg
Mercury-free Yes
Design / version Frosted
Show WEEE picto Yes
Dimmable No
Energy efficiency class A++
Energy consumption 2 kWh/1000 h
Benefits
• Long lifetime of up to 15000 h
• Low energy consumption
• Ideal for decorative and free-burning applications
• Three year guarantee
Applications
• Atmospheric accent lighting throughout the home
• Shops, hotels and restaurants
• Foyers, offices
• Outdoor applications only in suitable luminaires
Features
• Led alternative to conventional low voltage lamps
• Mercury-free lamps
