GX24 - CFL
GX24 CFL Master PL-T 26W 840 4P
611253 | Manufacturer: Philips | EAN: 8711500611253 | MPN: 927914684071
More info - Master PL-T 26W 840 4P Compact Fluorescent Lamp
The Master PL-T 26W 840 4P is an efficient compact fluorescent lamp, perfect for retail, hospitality, and office spaces that require higher lighting levels. With Philips' original bridge technology, it provides optimal performance and higher efficacy compared to other lamps. This 4-pin version is designed for electronic gear operation and features a plug-in/pull-out lamp base. Upgrade your lighting with this energy-saving solution!
Cap-Base GX24q-3
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 82 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 1725 lm
Luminous Flux EM 25 °C, Nominal 1800 lm
Luminous Efficacy Rated EM 25 °C 72 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 379 -
Lamp Wattage 26 W
Lamp Wattage EL 25 °C, Rated 24 W
Lamp Wattage EL 25 °C, Nominal 26 W
Lamp Voltage EM 25 °C 80 V
Lamp Current EM 25 °C 0.300 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 29 kWh

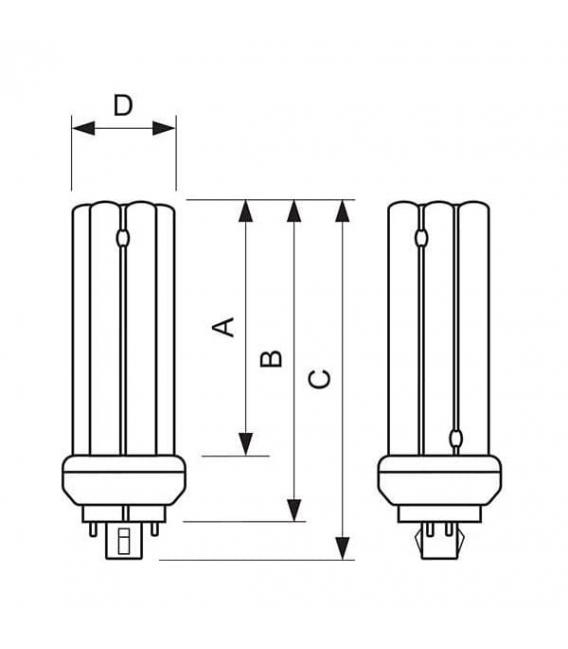

Base Face to Base Face A 86.7 (max) mm
Insertion Length B 111 (max) mm
Overall Length C 126.7 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)
Features
• 4-pin base
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up
Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units, outdoor lighting
• First choice for short switching cycles, emergency lighting and deep dimming
