GX24 CFL Master PL-T 57W 830 4P

Cap-Base GX24q-5
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 830 [CCT of 3000 K]
Color Rendering Index 82 Ra8
Color Designation Warm White
Color Temperature 3000 K
Luminous Flux EM 25 °C, Rated 4200 lm
Luminous Flux EM 25 °C, Nominal 4300 lm
Luminous Efficacy Rated EM 25 °C 75 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 434 -
Chromaticity Coordinate Y 397 -
Lamp Wattage EL 25 °C, Rated 56 W
Lamp Wattage EL 25 °C, Nominal 57 W
Lamp Voltage EM 25 °C 160 V
Lamp Current EM 25 °C 0.325 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 59 kWh

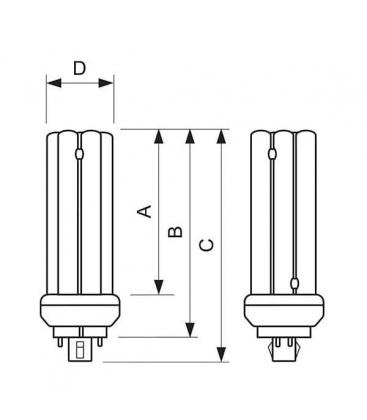

Base Face to Base Face A 157.7 (max) mm
Insertion Length B 182 (max) mm
Overall Length C 197.7 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)

Features
• 4-pin base
• Philips’ bridging technology applied
• Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up

Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units, outdoor lighting
• First choice for short switching cycles, emergency lighting and deep dimming

It needs ballast	yes
Dimmable	yes, with DIMM ECG
Energy efficiency class	A
Lamp holder, lamp socket	GX24q-5
Wattage - (W)	57
Luminous flux - (lm)	4300
Luminous efficacy - (lm / W)	75
Color temperature - (K)	3000
Light color code	830
Color rendering - (CRI)	82
Energy consumption - (kWh / 1000h)	57
Lifetime - (h)	13000
Factory packed - (pieces)	10
