611451 | Manufacturer: Philips | EAN: 8711500611451 | MPN: 927914984071

GX24 CFL Master PL-T 57W 840 4P


Product is out of production!

More info

More info

The GX24 Compact Fluorescent Lamp Master PL-T 57W 840 4P is an efficient compact fluorescent lamp perfect for retail, hospitality, and office spaces that require higher lighting levels. With Philips' original bridge technology, this lamp provides optimal performance and higher efficacy compared to other options. Its 4-pin design allows for easy operation on electronic gear with a plug-in/pull-out base. Experience substantial light output, multiple color choices, good color rendering, and low light depreciation over its long lifespan. Ideal for recessed or surface mounted downlighters, wall units, outdoor lighting, emergency situations, and deep dimming needs.


Cap-Base GX24q-5
Cap-Base Information 4P
Life to 10% fail Preheat EL,3h 8000 h
Life to 10% fail Brez predgretja EL,3h 4500 h
Life to 50% fail Preheat EL,3h 13000 h
Life to 50% fail Brez predgretja EL,3h 7000 h
Color Code 840 [CCT of 4000 K]
Color Rendering Index 82 Ra8
Color Designation Cool White
Color Temperature 4000 K
Luminous Flux EM 25 °C, Rated 4200 lm
Luminous Flux EM 25 °C, Nominal 4300 lm
Luminous Efficacy Rated EM 25 °C 75 (min) lm/W
Design Temperature 28 C
Chromaticity Coordinate X 380 -
Chromaticity Coordinate Y 379 -
Lamp Wattage EL 25 °C, Rated 56 W
Lamp Wattage EL 25 °C, Nominal 57 W
Lamp Voltage EM 25 °C 160 V
Lamp Current EM 25 °C 0.325 A
Dimmable Yes
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 59 kWh

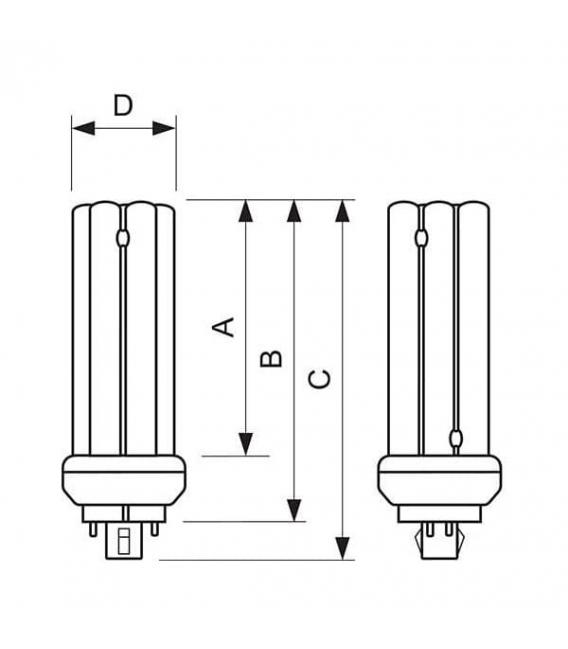

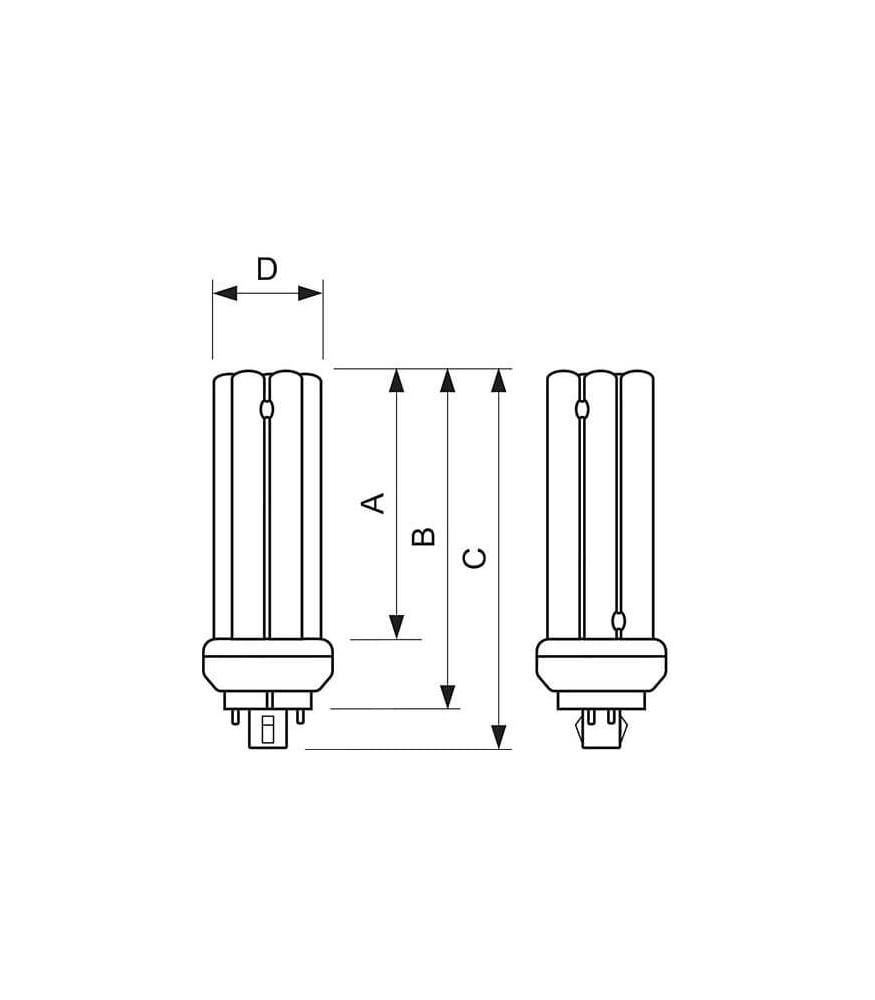

Base Face to Base Face A 157.7 (max) mm
Insertion Length B 182 (max) mm
Overall Length C 197.7 (max) mm
Diameter D 41 (max) mm
Optimal light performance for short or long operation per switch-on
• Substantially more light (about 15% more) per light point than with other similar shapes
• Multiple light color choice
• Good color rendering (CRI > 80)

Features
• 4-pin base
Philips’ bridging technology applied
Fluorescent tri-phosphor technology
• Low light depreciation over lamp life
• Fast light run-up

Applications
• Designed for general or supplementary lighting in professional and semi-professional environments
• Ideal for use in recessed or surface mounted downlighters, wall units, outdoor lighting
• First choice for short switching cycles, emergency lighting and deep dimming

It needs ballastyes
Dimmableyes, with DIMM ECG
Energy efficiency classA
Lamp holder, lamp socketGX24q-5
Wattage - (W)57
Luminous flux - (lm)4300
Luminous efficacy - (lm / W)75
Color temperature - (K)4000
Light color code840
Color rendering - (CRI)82
Energy consumption - (kWh / 1000h)57
Lifetime - (h)13000
Factory packed - (pieces)10
