Z2000 S 400V BN140497 Ignitor

Upgrade Your Lighting System with the Z2000 S/400V Electronic Superimposed IgnitorEnhance Performance and Reliability

The Z2000 S/400V BN140497 electronic superimposed ignitor is the perfect choice for upgrading your lighting system. Designed specifically for HI lamps up to 2000W, this standard version ignitor ensures a smooth and reliable ignition process every time. Say goodbye to flickering lights and hello to consistent illumination.

Advanced Features for Easy Installation

With its wide range of features, the Z2000 S/400V ignitor makes installation a breeze. The phasing of the ignition voltage at 60 - 90°el and 240 - 270°el guarantees optimal performance. The screw terminals allow for quick and secure connection with wires ranging from 0.75mm² to 2.5mm², making it suitable for various setups.

Compatible with Protection Class I and II Luminaires

No matter what type of luminaire you have, the Z2000 S/400V ignitor has got you covered. It is compatible with both protection class I and II luminaires, ensuring versatility in any lighting setup. You can trust in its high-quality construction to deliver exceptional performance while keeping your space safe.

Unleash Brilliant Illumination Today!

Illuminate your world today by upgrading your lighting system with the Vossloh Schwabe Z2000 S/400V BN140497 electronic superimposed ignitor! With its impressive technical specifications including a voltage AC range of 380-415V, frequency range of 50-60Hz, max lamp current of 12A, internal loss less than 5W, inherent heating less than32K, ignition voltage between 4-5kV, load capacity of 20-2000pF, and compact casing dimensions (diameter: 50mm, length: 98mm), this ignitor is a powerhouse that will transform your space. Don't settle for subpar lighting when you can have the best. Upgrade to the Z2000 S/400V electronic superimposed ignitor today and experience enhanced performance, reliability, and brilliance in every corner of your environment. Trust in Vossloh Schwabe's expertise and take your lighting system to new heights!

Electronic superimposed ignitors for HI lamps up to 2000 W

Standard version
Phase position of the ignition pulse: 60 - 90°el and 240 - 270°el
Max. permissible housing temperature: 105 °C
Screw terminals: 0.75 - 2.5 mm²
Mounting: Threaded bolt with pre-mounted toothed lock washer and nut
For luminaires of protection classes I and II
Voltage: 380 - 415 V
Frequency: 50 - 60 Hz
Max. Lamp current: 12 A
Power loss: < 5 W
Self-heating: < 32 K
Ignition voltage: 4 - 5 kV
Load capacity: 20 - 2000 pF
Switch-off time: -

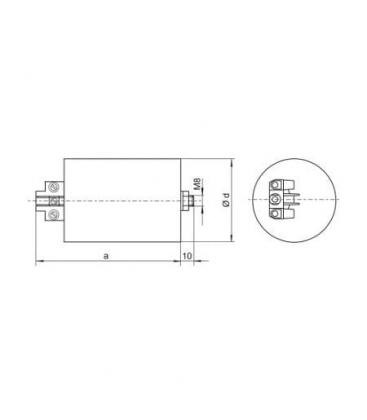

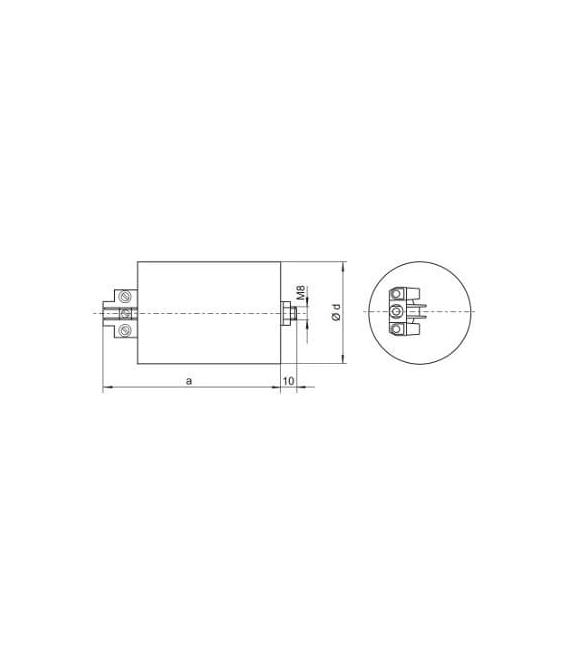

Housing: d (50 mm), a (98 mm)

Voltage - (V)	400
Wattage - (W)	2000
Energy consumption - (kWh / 1000h)	2000
Factory packed - (pieces)	10
