Z400 M K Ignitor

Upgrade Your Lighting System with the Z400 M K Electronic Superimposed IgnitorExperience Improved Performance and Safety

The Z400 M K electronic superimposed ignitor is the perfect solution for upgrading your lighting system. Designed specifically for HS (high pressure sodium), HI (metal halide), and ceramic discharge lamps, this compact ignitor ensures a smooth ignition process, guaranteeing improved performance and safety.

Compact Shape for Easy Installation

With its compact shape, the Z400 M K ignitor offers easy installation in various luminaires. Its male nipple with pre-assembled washer and nut provides secure fastening options, making it compatible with protection class I and II luminaires.

Wide Voltage Range for Versatile Use

Featuring a voltage range of 220-240V, the Z400 M K ignitor can be used in different electrical systems without any compatibility issues. This versatility allows you to upgrade your lighting system effortlessly.

Maximum Casing Temperature of 105 °C

Safety is paramount when it comes to lighting systems. The Z400 M K ignitor ensures peace of mind with its maximum casing temperature of 105 °C. You can trust that this product will operate safely even under demanding conditions.

Faster Switch-off Time for Efficiency

Efficiency is key in any lighting system. The Z400 M K ignitor boasts a quick switch-off time, allowing for optimal energy usage and reducing unnecessary power consumption. Don't settle for less when it comes to your lighting needs - choose the Z400 M K electronic superimposed ignitor today! Upgrade your lighting system with confidence knowing that you have chosen a reliable product designed to enhance performance while ensuring safety and convenience.

For high-pressure sodium lamps (HS), metal halide lamps (HI) and ceramic arc tube lamps (C-HI)Electronic superimposed ignitors for HS 70...400 W and HI lamps 35 to 400W.

• Phase position of the ignition pulse: 60 - 90°el and 240 - 270°el
• Max. permissible housing temperature: 105 °C
• Mounting: Threaded bolt with pre-mounted toothed lock washer and nut
• For luminaires of protection classes I and II
• Housing: plastic (PC) with screw terminals: 0.75 - 4 mm²
• Voltage: 220 - 240 V
• Frequency: 50 - 60 Hz
• Max. Lamp current: 5 A
• Power loss: < 3 W
• Self-heating: < 35 K
• Ignition voltage: 4 - 5 kV
• Load capacity: 20 - 50 pF
• Switch-off time: -

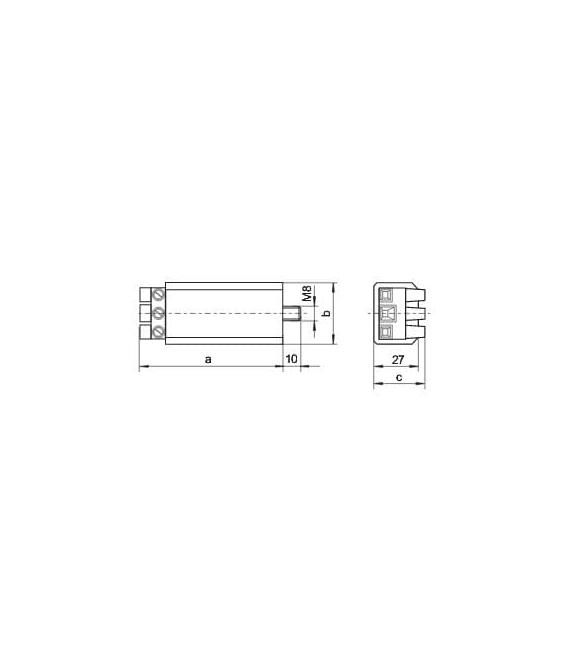

• Housing: a (78 mm), b (34 mm), c (27 mm)

Voltage - (V)	220
Wattage - (W)	400
Energy consumption - (kWh / 1000h)	400
Factory packed - (pieces)	10
