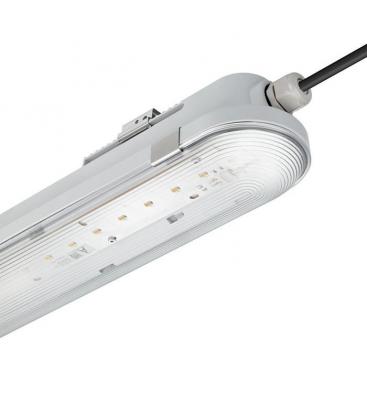

CoreLine LED WT120C 22W 840 PSU L1200 IP65

Number of light sources 1 pc
Light source color 840 neutral white
Light source replaceable No
Number of gear units 1 unit
Driver/power unit/transformer Power supply unit
Driver included Yes
Optical cover/lens type Polycarbonate bowl/cover
Luminaire light beam spread 110°
Connection Push-in connector 3-pole
Protection class IEC Safety class I
Glow-wire test Temperature 850 °C, duration 30s
Flammability mark For mounting on normally flammable surfaces
CE mark CE mark
ENEC mark ENEC mark
Warranty period 5 years
Constant light output No
Number of products on MCB of 16 A type B 24
RoHS mark RoHS mark
Product family code WT120C [ Coreline Waterproof]
Input Voltage 220 - 240 V
Input Frequency 50 - 60 Hz
Inrush current 8 A
Inrush time 0.060m s
Power Factor (Min) 0.9
Dimmable No
Housing Material Polycarbonate
Reflector material Steel
Optical cover/lens material Polycarbonate
Fixation material Stainless steel
Optical cover/lens finish Textured

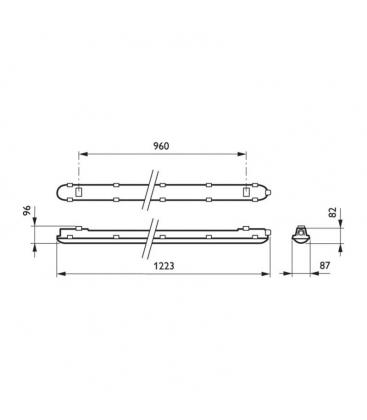

Overall length 1250 mm
Overall width 87 mm
Overall height 96 mm
Ingress protection code IP65 [ Dust penetration-protected, jet-proof]
Mech. impact protection code IK08 [ 5 J vandal-protected]
Initial luminous flux (system flux) 2900 lm
Luminous flux tolerance ±10%
Initial Led luminaire efficacy 123 lm/W
Init. Corr. Color Temperature 4000 K
Init. Color Rendering Index ≥80
Initial chromaticity (0.38, 0.38) SDCM <3
Initial input power 23.5 W
Power consumption tolerance ±10%
Control gear failure rate at median useful life 50000 h 5%
Lumen maintenance at median useful life 50000 hL75
Ambient temperature range –20…+35 °C
Performance ambient temperature Tq 25 °C
Maximum dim level Not applicable
Suitable for random switching Yes (relates to presence/ movement detection and daylight harvesting)

Benefits
• Up to 64% energy savings compared with TL-D
• Reliable Led technology, ensuring maintenance-free installation and a long lifetime
• Direct replacement for conventional waterproof luminaires in terms of light performance, installation flexibility and length

Features
• Can be used to replace traditional waterproof luminaires ranging from 18 to 58 W TL-D
• Wide-beam light distribution
• Diffuser with optical element ensures visual comfort

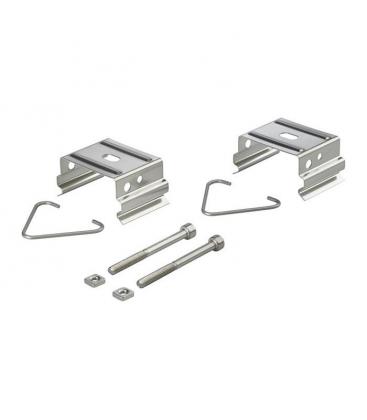

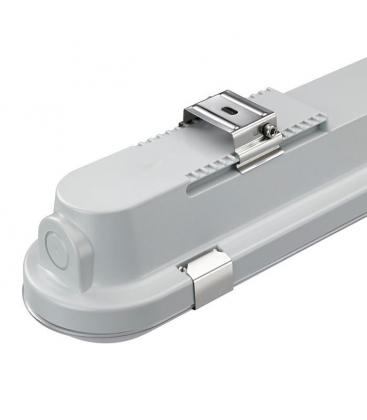

• Ceiling-mounted bracket and suspension hooks included; installation can be made vandal-proof by additional screw fixation of mounting brackets
• Vandal-proof by additional screw fixation of mountingbrackets
• Optional waterproof external connector for easier installation (WEC)
• Optional emergency lighting

Applications
• Parking garages
• Warehouses
• General lighting
