K12s
K12s HQI-TS 2000W n l
530660 | Manufacturer: Osram | EAN: 4008321530660 | MPN: HQI-TS-2000-N-L
More info - Quality K12s Lamp HQI-TS 2000W n l Premium Solution
The K12s Metal Halide Lamp HQI-TS 2000W n l is a highly efficient and powerful lighting solution. With its high luminous flux and long lifespan, it's perfect for compact floodlights. It can be easily operated with conventional igniters and control gear, thanks to its K12s base. Ideal for sports stadiums, industrial installations, airports, docks, and more. This lamp is designed for use in enclosed luminaires only. Upgrade your lighting setup with the K12s Metal Halide Lamp HQI-TS 2000W n l today!
Nominal wattage 2000 W
Rated wattage 2150 W
Lamp current 10.4 A
PFC capacitor at 50 Hz 60µF
Nominal voltage 200 V
Ignition voltage 4 / 5 kVp
Rated lamp efficacy (standard condition) 107 lm/W
Rated luminous flux 230000 lm
Color rendering index Ra 65
Color temperature 4100 K
Light color 642
Rated LLMF at 2000 h 0.91
Rated LLMF at 4000 h 0.85
UV protection No

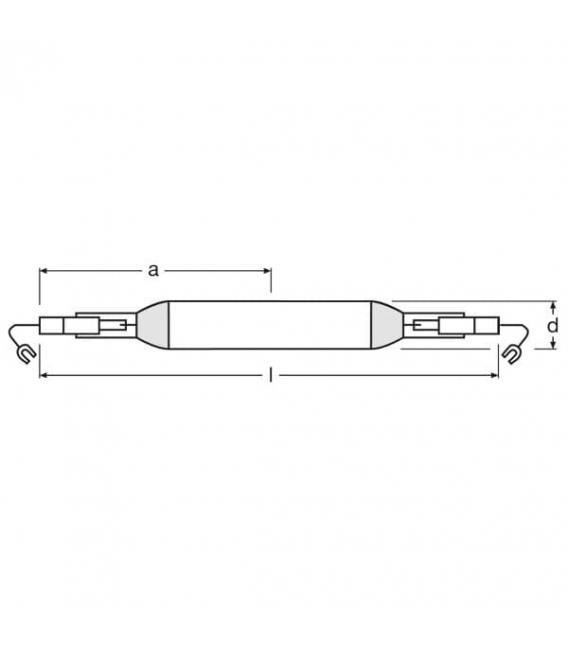

Diameter 40 mm
Length 274 mm
Light center length (LCL) 137 mm
Maximum permitted outer bulb temperature 950 °C
Maximum permitted pinch temperature 390 °C
Rated lamp survival factor at 2000 h 0.95
Rated lamp survival factor at 4000 h 0.83
Lifespan B50 8000 h
Base (standard designation) K12s-36
Design / version Clear
Lamp mercury content 220 mg
Dimmable No
Burning position p15
Enclosed luminaire required Yes
Hot restart Yes
Energy efficiency class A+
Energy consumption 2365 kWh/1000 h
Benefits
• Very high efficiency
• Very high luminous flux
• Long life time
• May be operated on conventional igniters and control gear
• Ideal for compact floodlights
• Good positioning thanks to K12s base
Areas of application
• Sports stadiums and floodlight systems
• Industrial installations
• Airports
• Docks and port facilities
• Marshaling yards, container transshipment facilities
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Features
• Powerstar quartz technology
