Lamp holders G13 T8
G13 push-through lampholder T8 T12
100591 | Manufacturer: Vossloh Schwabe | MPN: 100591
More info - Premium G13 Push-Through Lampholder for T8 T12 Lamps
Upgrade your lighting fixtures with the G13 push-through lampholder for T8 and T12 lamps. Made of durable PC material with a white casing, this lampholder is designed for easy installation and secure connection. Suitable for wall thickness 0.6 - 2 mm, it provides a reliable solution for replacing or adapting existing light fixtures. Meet luminaire directive EN 60598-1 Para. 8.2 standards while enhancing the functionality of your luminaires with this high-quality lamp holder. Upgrade today and enjoy improved lighting performance in your space!
G13 push-through lampholders for lamps T8 and T12

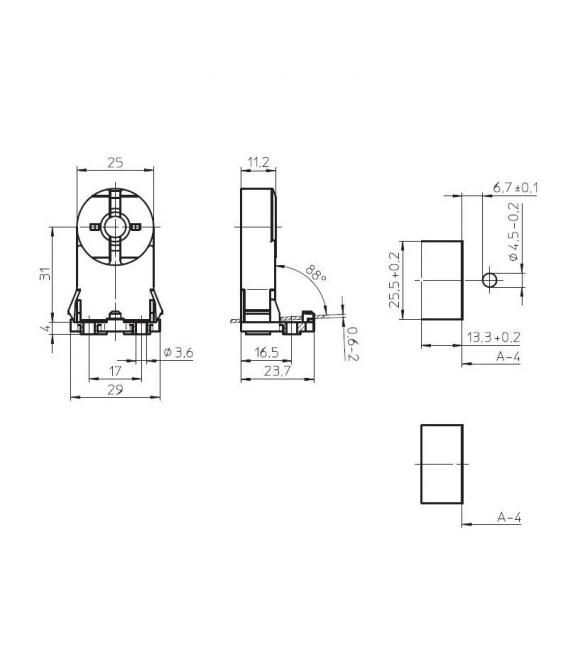

Lamp axis: 31 mm
Casing: PC, white, frontplate: PBT GF, white
T140, nominal rating: 2/500
Push-in terminals: 0.5 - 1 mm²
Lateral fixing clips for wall thickness 0.6 - 2 mm
Push-through lampholders are inserted from below through a cut-out in the luminaire casing and are secured by lateral catches. This type of lampholder is frequently used in luminaires on which the lampholder remains visible from the outside, e.g. in so-called strip lighting. The electrical leads are laid beneath the sheet metal level. Luminaire directive EN 60598-1 Para. 8.2 must be observed with regard to the luminaire.
