Lamp holders G13 T8
Lampholder Base G13 Rotoclic built in lampholder 59106
934025 | Manufacturer: Vossloh Schwabe | EAN: 4050732934025 | MPN: 537183
More info - Rotoclic 59106 Built-In Lampholder Base G13
Upgrade your lighting fixtures with the G13 Rotoclic built-in lampholder for T8 and T12 lamps. This lampholder features lateral push-in terminals suitable for Top Test, making installation a breeze. With rear split pins designed for wall thickness up to 1.2mm, this lampholder is versatile and easy to use. Perfect for recessed ceiling or surface-mounted luminaires, this product offers designers flexibility in lamp positioning for optimal light distribution. Enhance your lighting setup with the reliable and efficient Lampholder Base G13 Rotoclic 59106.

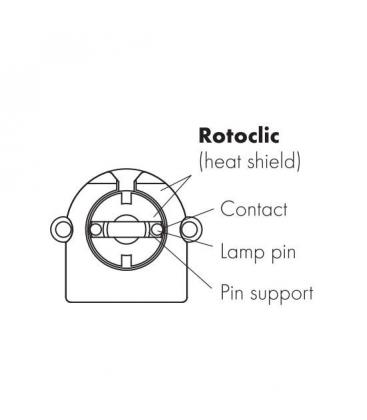

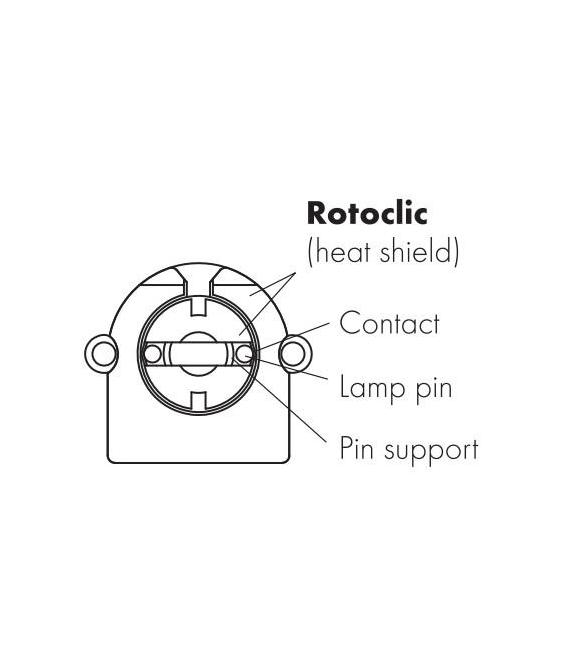

G13 Rotoclic built-in lampholder for lamps T8 and T12
T140, nominal rating: 2/500
Lateral push-in terminals: 0.5 - 1 mm², suitable for Top Test
Rear split pins for wall thickness up to 1.2 mm

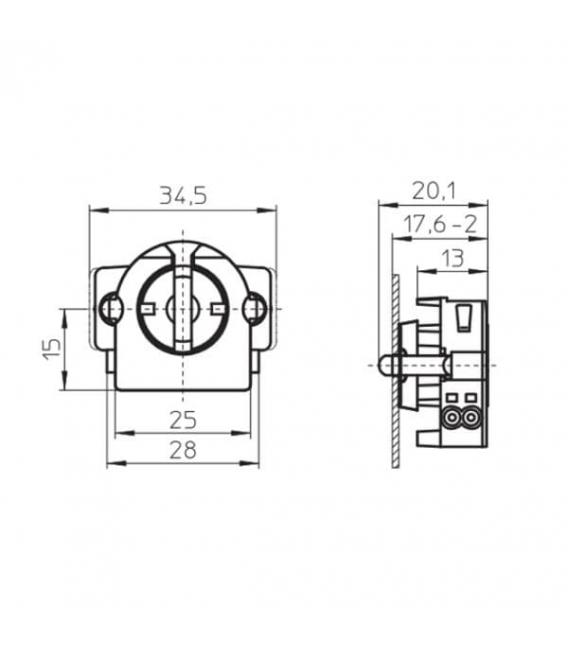

Type: 59105/59106 lampholder thickness: 13 mm
Ref. No.: 537183 with spring adjustment

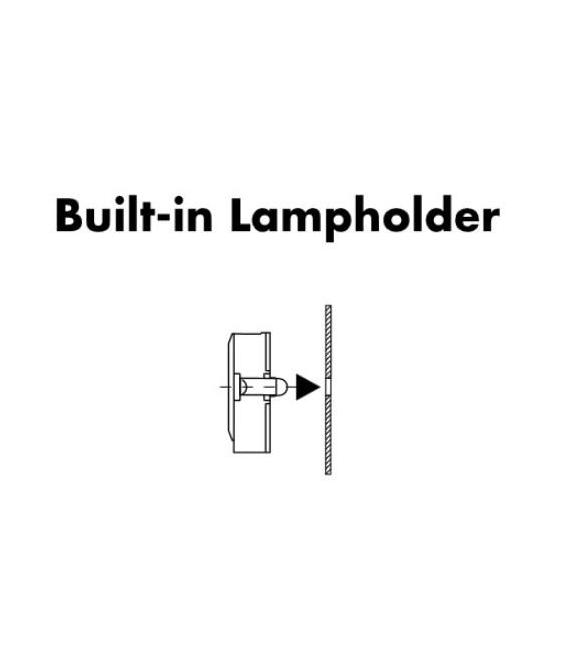

Built-in lampholders
This design is also predominantly used for recessed ceiling and surface-mounted luminaires. However, unlike push-fit lampholders, built-in lampholders are usually fitted at the ends of the luminaire boxes. In addition to the usual fixing with split pins attached to the rear, there are also countless versions with fixing clips, push-fit studs or screw-in holes, which are also available with spring-loaded length compensation. Built-in lampholders offer luminaire designers a wealth of scope regarding the choice of lamp position in relation to the reflector. This enables great variation in light distribution as the lampholder does not dictate the distance of the centre of the lamp from the metal casing.
