Lamp holders G13 T8
Lampholder G13 107958 screw ring & foot gaskets IP67
107958-504078-103710 | Manufacturer: Vossloh Schwabe | EAN: 4019768054947 | MPN: 107958-504078-103710
More info - IP67 Lampholder G13 107958 Screw Ring Foot Gaskets
Upgrade your lighting fixtures with the G13 push-fit lampholder for T8 /T12 lamps. Made of durable PC and PBT GF materials, this lampholder is designed for easy installation in surface-mounted or built-in luminaires. With a screw ring and foot gaskets included, this IP67-rated lampholder ensures a secure electrical connection while providing protection against dust and moisture. Suitable for wall thickness 1.4-2mm, this versatile lampholder is perfect for replacing existing sockets or adapting fixtures to accommodate new bulb types. Enhance your lighting setup effortlessly with this high-quality lampholder component.

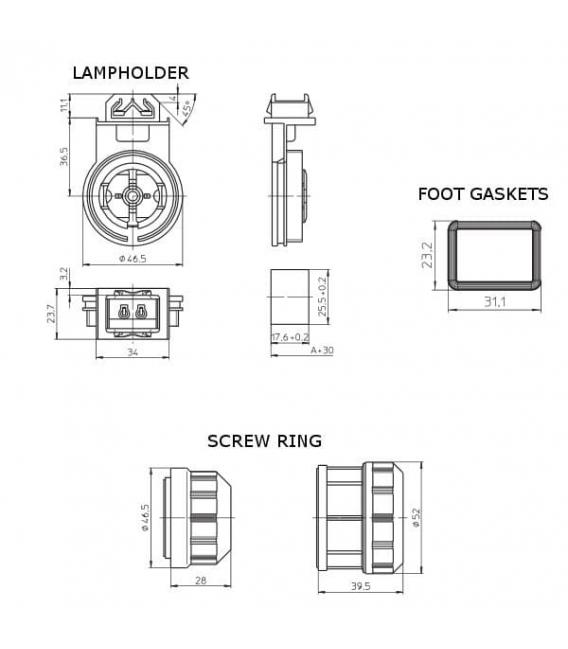

G13 push-fit lampholders for lamps T8/T12
Casing: PC, interior part: PBT GF
Rotor: PBT GF, white, T140
Nominal rating: 2/500
Push-in terminals: 0.5 - 1 mm²
Fixing clips for wall thickness 1.4–2 mm
Type: 84172 system 163
Ref. No.: 107958 casing white
Screw ring
Ring: PBT GF, gasket: silicone
Type: 84122 for lamps T8
Ref. No.: 103710 white
Foot gaskets for system 163
Ref. No.: 504078
Material: silicone, transparent
For degree of protection IP67
Material: EPDM, black

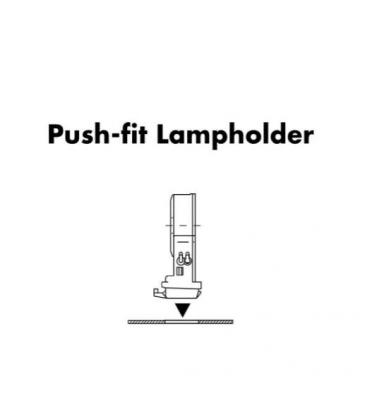

Push-fit lampholders
This lampholder type, which is frequently found in surface-mounted ceiling and built-in luminaires, is pushed into the luminaire casing from above. The lampholder foot should protrude by no more than 4 mm to match the usual height of the spacing cams in the luminaire casing. These lampholders are mostly wired above the luminaire casing to the side of the lampholder. However, there are also lampholders on which the wiring runs through the lampholder foot, with the leads laid beneath the luminaire casing.
