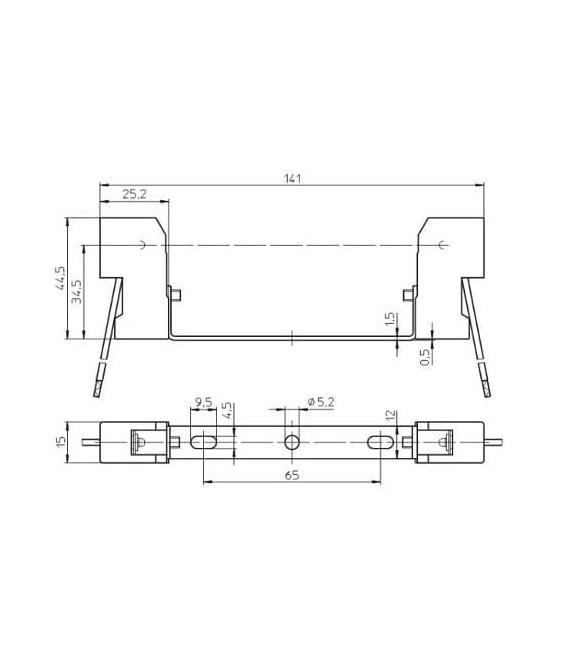

Lampholder Base R7s Ceramic 114.2 mm
071923 | Manufacturer: Vossloh Schwabe | EAN: 4014364071923 | MPN: 107192
More info - R7s Ceramic 114.2 mm Premium Lampholder Base for Lamps
Upgrade your lighting fixtures with the Lampholder Base R7s Ceramic 114.2 mm. This partly enclosed lampholder features a ceramic casing and Cu silver bulb contact pin, suitable for 8/250 wattage. The Cu nickel-plated leads with PTFE insulation ensure reliable electrical connection. With oblong holes for M4 screws and a central hole for an M5 screw, this lampholder is perfect for replacing or adapting existing fixtures. Trust the Type 32360 design with a contact distance of 114.2 mm to enhance your lighting setup effortlessly. Elevate your illumination game today!
Partly enclosed R7s lampholder
Casing: ceramic, T350
Contact pin: Cu, silver bulb
Nominal rating: 8/250
Leads: Cu nickel-plated, stranded conductors 0.75 mm², PTFE-insulation, length: 200 mm
Oblong holes for screws M4
Central hole for screw M5
Type: 32360 contact distance: 114.2 mm
