Lumilux T5 ES 25W 830 HE High Efficient G5

Nominal voltage 143 V
Nominal wattage 25 W
Rated lamp efficacy (HF data 25 °C) 97 lm/W
Rated wattage 25.30 W
Color rendering index Ra≥80
Rated luminous flux 2450 lm
Luminous flux at 25 °C 2450 lm
Luminous flux at 35 °C 2900 lm
Light color 830
Color temperature 3000 K
Nominal luminous flux 2450 lm
Light color (designation) LUMILUX Warm White
Rated LLMF at 2000 h 0.95
Rated LLMF at 4000 h 0.93
Rated LLMF at 6000 h 0.92
Tube diameter 16 mm

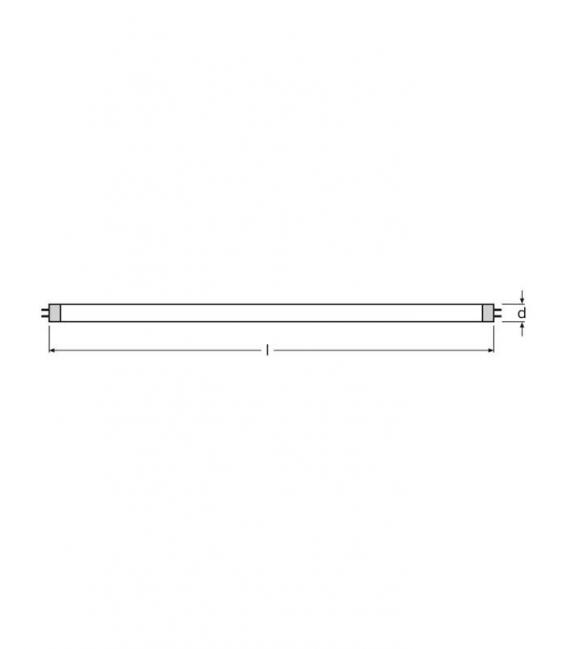

Length 1149 mm
Length with base excl. base pins/connection 1149 mm
Diameter 16 mm
Rated ambient temp.w.max.luminous flux 35 °C
Service life 19000 h
Lifespan 24000 h
Operation mode LLMF/LSF HF
Rated lamp life time 24000 h
Nominal lamp life time 24000 h

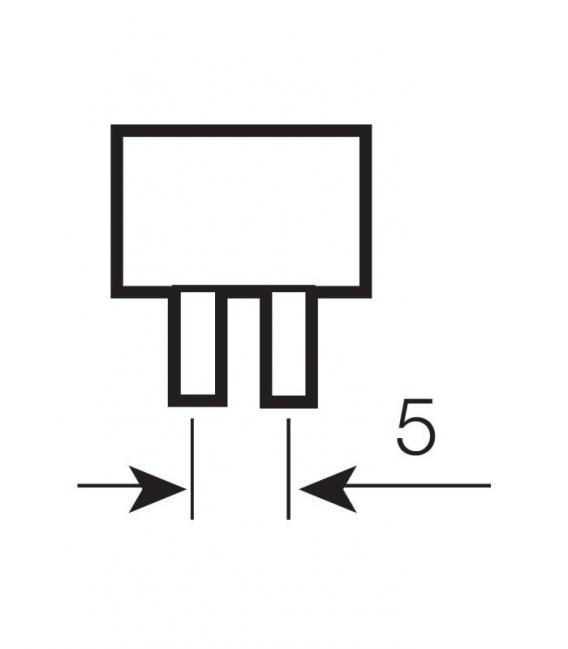

Base (standard designation) G5
Mercury content 1.9 mg
Appropriate disposal acc. to WEEE Yes
Product remark For ECG operation only
Lamp designed for internal luminaire temperatures of –30…40 °C
Optimum luminous flux achieved at 35 °C
Dimmable Yes
Suitable for indoor Yes
Energy efficiency class A+
Energy consumption 28 kWh/1000 h

Benefits
• Up to 10% energy savings compared to standard T5 HE LUMILUX lamps
• Excellent economy and efficiency
• Pay-back time less than 1 year
• High luminous efficacy

Applications
• Public buildings
• Offices
• Shops
• Supermarkets and department stores
• Industry
• Outdoor applications only in suitable luminaires

Features
• Luminous efficacy: up to 114 lm/W
• Very good lumen maintenance: 90% throughout the service lifetime of the lamp
• Long average lifetime: up to 24000 h (with QUICKTRONIC ECG)
• Good color rendering group: 1B (Ra: 80…89)
• Dimmable
