Lamps with high colour recognition light
Master TL5 49W 950 HO 90 de Luxe G5
890627 | Manufacturer: Philips | EAN: 8711500890627 | MPN: 927991595024
More info - High Colour Recognition Light Lamp Master TL5 49W 950 HO Luxe G5
Enhance your space with the High Colour Recognition Light Lamps - Master TL5 49W 950 HO 90 de Luxe G5. With a tube diameter of 16mm and a Color Rendering Index (CRI) of 90, this lamp presents colors in a natural and vibrant way, just like daylight. Perfect for places where color accuracy is crucial, such as printing industry, libraries, museums, hospitals, and shops. Upgrade to exceptional color quality today!
Cap-Base G5
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 21000 h
Life to 50% fail Preheat EL,3h 30000 h
Color Code 950 [CCT of 5000 K]
Color Rendering Index 92 Ra8
Color Designation Daylight
Color Temperature 5200 K
Luminous Flux EL 25 °C, Rated 3700 lm
Luminous Flux EL 25 °C, Nominal 3700 lm
Luminous Flux Lamp EL 35 °C 4200 lm
Luminous Efficacy Rated HF 25 °C 74 lm/W
Luminous Efficacy Rated HF 35 °C 85 lm/W
LLMF HF 2000 h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 340 -
Chromaticity Coordinate Y 352 -
Lamp Wattage 49 W
Lamp Wattage EL 25 °C, Rated 49.7 W
Lamp Wattage EL 25 °C, Nominal 49 W
Lamp Wattage EL 35 °C 49.3 W
Lamp Voltage EL 25 °C 195 V
Lamp Voltage EL 35 °C 191 V
Lamp Current EL 25 °C 0.255 A
Lamp Current EL 35 °C 0.260 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 54 kWh
Calibration Current 0.255 A
HF Generator Rated Voltage 390 V
Resistor 765 Ω

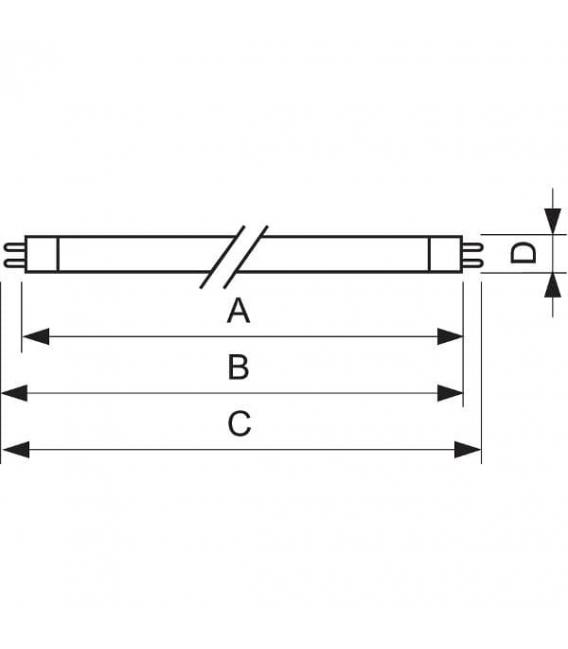

Base Face to Base Face A 1449 (max) mm
Insertion Length B 1453.7 (min), 1456.1 (max) mm
Overall Length C 1463.2 (max) mm
Diameter D 17 (max) mm
This TL5 High Output lamp (tube diameter 16 mm) has excellent color rendering (CRI > 90). This means that colors are presented in a natural way, making them appear rich, deep and enhanced as they do in daylight. Application areas are places where color rendering is key, e.g. the printing industry, libraries, museums, hospitals and shops (jewelry, flowers, clothing, textile, leather, carpets).
Features
• 40% thinner than TL-D lamps
• Highly efficient multi-band fluorescent coating in combination with precoating
• Specifically designed for operation with electronic gear and well-suited for dimming
• Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
• Can be ignited from –15 to +50 °C
Applications
• Where a high color recognition is needed: first aid and treatment rooms in hospitals, printing rooms, jewellery manufacturing, dentists, hairdressing, museums and shops
