869838 | Manufacturer: Philips | EAN: 8711500869838 | MPN: 927993096524
Master TL5 54W 965 HO 90 de Luxe G5
Product is out of production!
More info
Enhance your space with the High Colour Recognition Light Lamps - Master TL5 54W 965 HO 90 de Luxe G5. With a tube diameter of 16mm, this lamp offers exceptional color rendering (CRI 90), presenting colors in a natural and vibrant way. Perfect for areas where accurate color representation is crucial, such as printing industry, libraries, museums, hospitals, and shops. Upgrade your lighting experience today! high, colour, recognition, light, lamp, master, tl5, 54w, 965, ho
Cap-Base G5
Bulb T5 [16 mm]
Life to 10% fail Preheat EL,3h 21000 h
Life to 50% fail Preheat EL,3h 30000 h
Color Code 965 [CCT of 6500 K]
Color Rendering Index 93 Ra8
Color Designation Cool Daylight
Color Temperature 6800 K
Luminous Flux EL 25 °C, Rated 3800 lm
Luminous Flux EL 25 °C, Nominal 3800 lm
Luminous Flux Lamp EL 35 °C 4300 lm
Luminous Efficacy Rated HF 25 °C 70 lm/W
Luminous Efficacy Rated HF 35 °C 80 lm/W
LLMF HF 2000 h Rated 96%
Design Temperature 35 C
Chromaticity Coordinate X 309 -
Chromaticity Coordinate Y 323 -
Lamp Wattage 54 W
Lamp Wattage EL 25 °C, Rated 54.3 W
Lamp Wattage EL 25 °C, Nominal 54 W
Lamp Wattage EL 35 °C 54 W
Lamp Voltage EL 25 °C 118 V
Lamp Voltage EL 35 °C 118 V
Lamp Current EL 25 °C 0.460 A
Lamp Current EL 35 °C 0.460 A
Dimmable Yes
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 1.4 mg
Energy consumption kWh/1000 h 59 kWh
Calibration Current 0.460 A
HF Generator Rated Voltage 235 V
Resistor 255 Ω

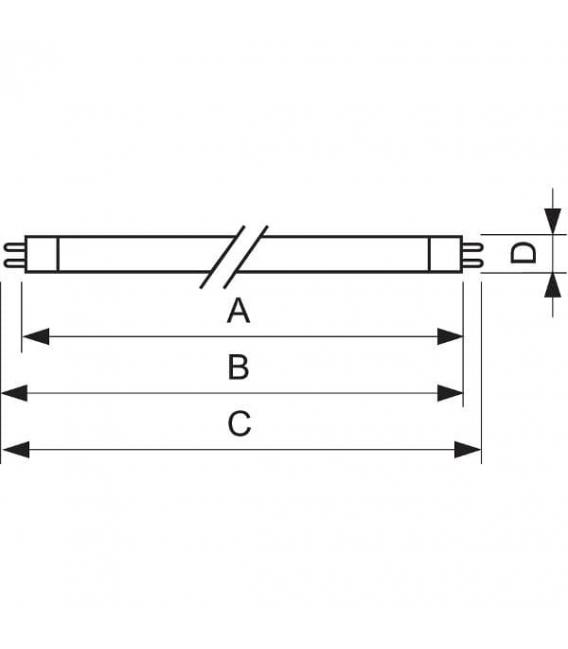

Base Face to Base Face A 1149 (max) mm
Insertion Length B 1153.7 (min), 1156.1 (max) mm
Overall Length C 1163.2 (max) mm
Diameter D 17 (max) mm
This TL5 High Output lamp (tube diameter 16 mm) has excellent color rendering (CRI > 90). This means that colors are presented in a natural way, making them appear rich, deep and enhanced as they do in daylight. Application areas are places where color rendering is key, e.g. the printing industry, libraries, museums, hospitals and shops (jewelry, flowers, clothing, textile, leather, carpets).
Features
• 40% thinner than TL-D lamps
• Highly efficient multi-band fluorescent coating in combination with precoating
• Specifically designed for operation with electronic gear and well-suited for dimming
• Maximum light output reached at approximately 35 °C in free-burning position if an electronic driver with cut-off feature is used
• Can be ignited from –15 to +50 °C
Applications
• Where a high color recognition is needed: first aid and treatment rooms in hospitals, printing rooms, jewellery manufacturing, dentists, hairdressing, museums and shops
