Optotronic OT 30 220V 12V P IP66 LED

Nominal voltage 220 - 240 V
Mains frequency 50 - 60 Hz
Input voltage AC 198 - 264 V
Power factor λ 0.95/0.90
ECG efficiency 85%
Device power loss 5 W
Inrush current 30 A
Max. ECG no. on circuit breaker 10 A (B) 13
Max. ECG no. on circuit breaker 16 A (B) 21
Surge capability (L-N) 4 kV
Nominal output voltage 12.5 V
Nominal output power 30 W
Galvanic isolation primary/secondary 3.75 kV

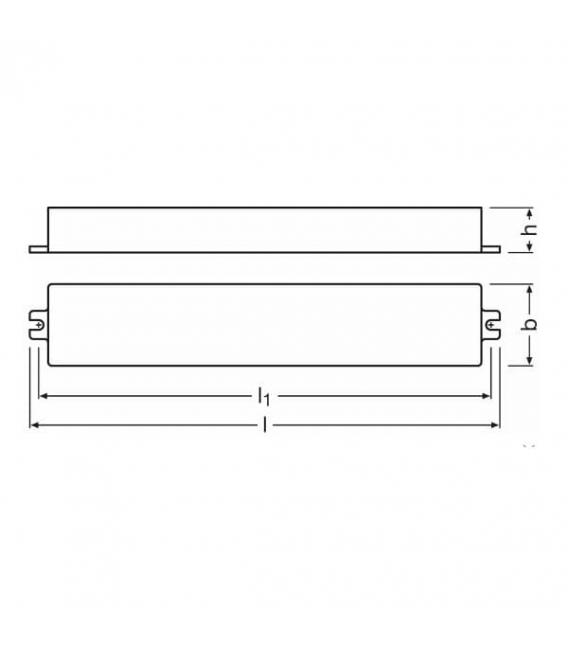

Length 220 mm
Width 40 mm
Height 22 mm
Mounting hole spacing, length 213 mm
Cable cross-section, input side 1 mm²
Cable cross-section, output side 1 mm²
Wire preparation length, input side 10 mm
Wire preparation length, output side 10 mm

Casing material Plastic
Ambient temperature range –25…+55 °C
Maximum temperature at tc test point 80 °C
Max.housing temperature in case of fault 110 °C
Temperature range at storage –40…85 °C
ECG lifetime 50000 h
Dimmable Yes (With OPTOTRONIC dimmers)
Dimming interface Not dimmable
Overheating protection Automatic reversible
Overload protection Automatic reversible
Short-circuit protection Automatic reversible
No-load proof Yes
Max. cable length to lamp/Led module 10m
Suitable for fixtures with prot. class II
Approval marks - approval CE / ENEC 18 / CB / C-Tick
Standards Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to CISPR 15/Acc. to IEC 61000 - 3-2/Acc. to IEC 61547
Type of protection IP66
Temperature range at storage –40…85 °C
Relative humidity 5…85%

Benefits
• Versatile scope of application due to output power range of up to 120 W
• Very high efficiency and reliability
• High IP protection (up to IP67)
• High surge protection: up to 3 kV (L-N) / 6 kV (L/N-PE)

Areas of application
• Suitable for indoor and outdoor installations
• Ideal for mounting in very tight spaces

Dimmable	yes
Voltage - (V)	220
Wattage - (W)	30
Energy consumption - (kWh / 1000h)	30
Protection mark - (IPXX)	66
Lifetime - (h)	50000
Factory packed - (pieces)	30
