LED driver LCM 40DA 2 100V 40W IP20

Elevate Your Lighting Experience with the LED Driver LCM 40DA 2 100V 40W IP20

Welcome to the world of advanced lighting control with the LED driver LCM 40DA 2 100V 40W IP20. This cutting-edge LED driver is designed to empower your lighting solutions with unparalleled precision and efficiency. With a rich history of innovation, this LED driver is here to redefine your indoor LED lighting experience. Discover its exceptional features, benefits, and technical specifications as we delve deeper into what makes this product a game-changer in the world of lighting technology.

Features:

• Output current level selectable via DIP switch
• Built-in active PFC function
• 180~295 VAC input only
• Protections: Short circuit/ Over temperature/ Over voltage
• Cooling by free air convection
• Fully isolated plastic case
• Class II power unit, no FG
• Built-in DALI interface and push dimming function
• Optional 12 V / 50 mA auxiliary output (Model No.: LCM-40DA-AUX)
• Logarithm or linear dimming curve selectable (Meet IEC62386–207)
• No load power consumption <0.5 W (<1.2 W for LCM-40DA-AUX)
• IP20
• Power supplies synchronization function up to 10 units
• 3 years warranty

Application:

Unleash the power of the LED driver LCM 40DA 2 100V 40W IP20 in various indoor LED lighting applications. Whether you're lighting up your home, office, retail space, or any indoor environment, this versatile LED driver is designed to meet your needs. Its customizable output current and dimming options make it perfect for achieving the ideal ambiance in any space.

Benefits:

• Energy Efficiency: With an impressive efficiency rating of 91%, this LED driver ensures that your lighting consumes less power while delivering maximum illumination.
• Versatility: The selectable output current and dimming curve options allow you to tailor your lighting to suit different environments and moods.
• Safety First: The LED driver is UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, GB19510.14, and GB19510.1 approved, guaranteeing top-notch safety standards.
• Easy Installation: Its compact dimensions (123.5 × 81.5 × 23 mm) and lightweight design (0.24 kg) make installation a breeze.

Technical Data:

• Input voltage range: 180295 VAC / 254417 VDC
• Input AC current: 0.23A / 230 VAC 0.2 A / 277 VAC
• Output options:
  • 2~100 VDC/350 mA
  • 2~80 VDC/500 mA
  • 2~67 VDC/600 mA
  • 2~57 VDC/700 mA
  • 2~45 VDC/900 mA
  • 2~40 VDC/1050 mA
• Input frequency range: 47~63Hz

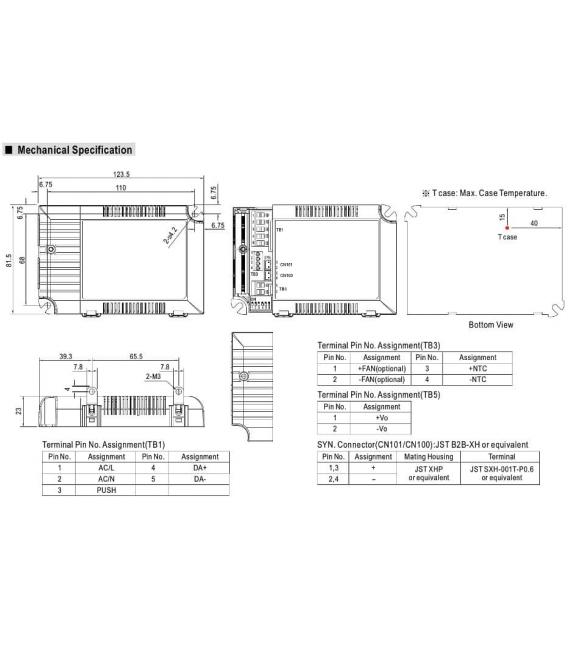

• Dimensions:123.5 × 81.5 × 23 mm
• Weight: 0.24 kg

Conclusion:

Experience lighting innovation like never before with the LED driver LCM 40DA 2 100V 40W IP20. Its unmatched features, precision, and safety standards make it the perfect choice for all your indoor LED lighting needs. Upgrade your lighting solutions today and enjoy the benefits of energy efficiency, versatility, and top-notch performance. Illuminate your world with confidence using the LED driver that sets new standards in lighting technology.

Download LCM-40DA-SPEC.pdf
