5761 30W 6V G4

Cap-Base G4 [ G4]
Philips Code 5761
Operating Position UNIVERSAL [ Any or Universal (U)]
Main Application Projection
Life To 50% Failures 100 h
Luminous Flux 765 lm
Correlated Color Temperature 3200 K
Color Rendering Index 100
Power (Rated) 30 W
Voltage 6 V
Bulb Material Quartz-UV Open

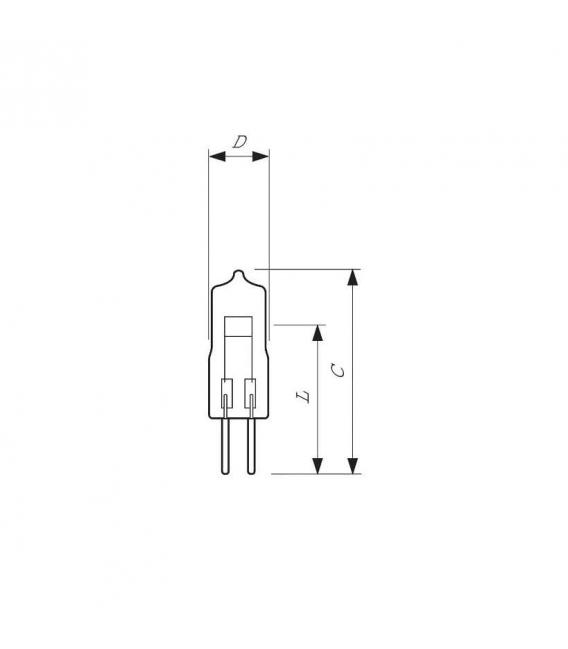

Filament Dimensions (W × H) 1.5 × 1.5
Bulb Temperature (Max) 900 °C
Pinch Temperature (Max) 400 °C
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 - the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.

Benefits
• High-quality light and easy to use
• Optimal beam performance
• 100% Color Rendering Index (CRI)
• Constant light output throughout lifetime

Features
• Distortion-free, quartz bulb and precisely defined filament position
• Lamp replacement without adjustment
• XHP version with xenon gas for maximum light output
• Flat filament available

Applications
• Studio, film, theatre and disco lighting
• Slide, overhead, profile and 8/16 mm film projectors
• Microscopes
• Optical equipment
• Slide and film viewers
• Surgery lamps
• Microfilm readers
• Dental lamps
• Spectrography

General safety informations
