6839C EHE ETA 100W 12V PG22

Cap-Base PG22
Bulb Material Quartz-UV Open
Filament Shape Flat
Operating Position s120
Main Application Projection
Life to 50% failures 50 hr
Color Rendering Index 100 Ra8
Color Temperature Technical 3400 K
Luminous Flux Lamp 3210 lm
Lamp Wattage 100 W
Voltage 12 V
Pinch Temperature 400 (max) °C
Bulb Temperature 900 (max) °C

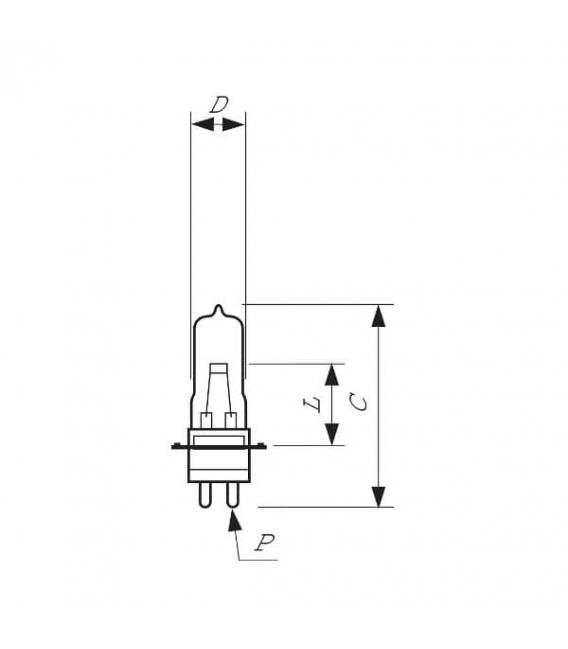

Diameter D 11.5 (max) mm
Light Center Length L 17.8 (min), 18 (nom), 18.2 (max) mm
Pin Diameter P 2.30 (min), 2.35 (nom), 2.40 (max) mm
Filament Dimensions (W × H) [mm] 4.2 × 2.3
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 - the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.

Benefits
• High-quality light and easy to use
• Optimal beam performance
• 100% Color Rendering Index (CRI)
• Constant light output throughout lifetime

Features
• Distortion-free, quartz bulb and precisely defined filament position
• Lamp replacement without adjustment
• XHP version with xenon gas for maximum light output
• Flat filament available

Applications
• Studio, film, theatre and disco lighting
• Slide, overhead, profile and 8/16 mm film projectors
• Microscopes
• Optical equipment
• Slide and film viewers
• Surgery lamps
• Microfilm readers
• Dental lamps
• Spectrography
