Master MHN SA 1800W 956 400V (P)SFC 20 6

Cap-Base (P)SFC
Cap-Base Information 20-6
Bulb TD40 [TD 40 mm]
Bulb Finish Clear
Operating Position p15 [Parallel ±15D or Horizontal(HOR)]
Life to 5% failures 1700 h
Life to 10% failures 2400 h
Life to 20% failures 3600 h
Life to 50% failures 6100 h
Color Code 956 [CCT of 5600 K]
Color Rendering Index 86 Ra8
Color Designation Daylight
Color Temperature 5600 K
Color Temperature Technical 5600 K
Luminous Flux Lamp EM 160000 lm
Luminous Efficacy Lamp EM 86 lm/W
Lumen Maintenance 1000 h 90%
Lumen Maintenance 2000 h 81%
Lumen Maintenance 5000 h 71%
Luminance Average EM 6700 cd/cm²
Chromaticity Coordinate X 330 -
Chromaticity Coordinate Y 339 -
Lamp Wattage EM 25 °C, Nominal 1800 W
Lamp Wattage EM 25 °C, Rated 1800 W
Voltage 400 V
Lamp Voltage 205 V
Lamp Current EM 10.5 A
Dimmable No

Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 250 mg
Energy consumption kWh/1000 h 2035 kWh
Pinch Temperature 300 (max) °C
Bulb Temperature 980 (max) °C

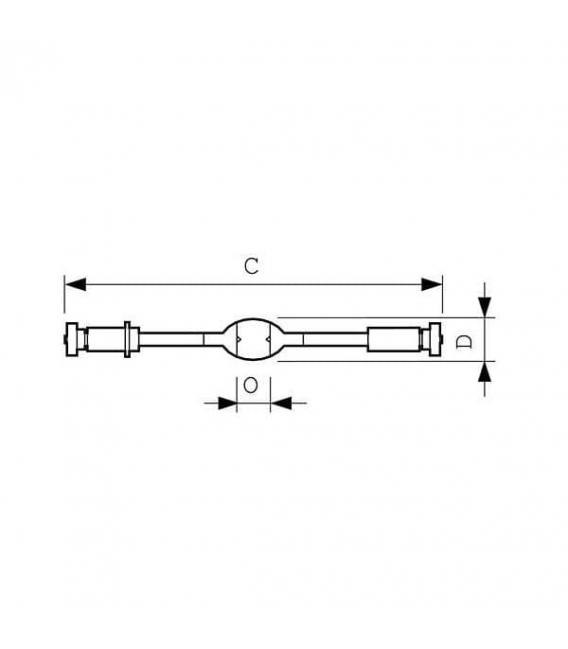

Overall Length C 364 (max) mm
Diameter D 41 (max) mm
Arc Length O 25 mmAllows compact and very efficient luminaire systems with high precision optics for good beam control and minimal spill light
• Very good color rendering creates a pleasant ambience with high visual comfort for players and spectators
• Continuous spectral distribution offers a superior solution for (semi-) professional stadiums with regular TV coverage

Features
• Very compact source (Short Arc) with high luminous efficacy and superior color rendering
• Double-pinch concept results in long lifetime
• Natural white color appearance, high color rendering and good color stability
• Daylight color temperature eases transition from daylight to artificial lighting

Applications
• Professional sports lighting and floodlighting

It needs ballast	yes
Energy efficiency class	A+
Lamp holder, lamp socket	(P)SFC
Wattage - (W)	1800
Luminous flux - (lm)	160000
Luminous efficacy - (lm / W)	89
Color temperature - (K)	5600
Light color code	956
Color rendering - (CRI)	86
Energy consumption - (kWh / 1000h)	1800
Lifetime - (h)	6100
Factory packed - (pieces)	1
Bulb type	discharge lamps
Technology	HID
