Master MHN SE 2000W 956 400V HO GX22

Cap-Base GX22
Cap-Base Information na [-]
Bulb TD40 [TD 40 mm]
Bulb Finish Clear
Operating Position any [Any or Universal (U)]
Life to 5% failures 1300 h
Life to 10% failures 1650 hr
Life to 20% failures 2100 h
Life to 50% failures 3000 h
Color Code 956 [CCT of 5600 K]
Color Rendering Index 84 Ra8
Color Designation Daylight
Color Temperature 5600 K
Color Temperature Technical 5600 K
Luminous Flux Lamp EM 220000 lm
Luminous Efficacy Lamp EM 108 lm/W
Lumen Maintenance 1000 h 95%
Lumen Maintenance 2000 h 91%
Chromaticity Coordinate X 338 -
Chromaticity Coordinate Y 368 -
Lamp Wattage EM 25 °C, Nominal 2000 W
Lamp Wattage EM 25 °C, Rated 2100 W
Voltage 400 V
Lamp Voltage 210 V
Lamp Current EM 11.2 A
Dimmable No

Energy Efficiency Label (EEL) A+
Mercury (Hg) Content 215 mg
Energy consumption kWh/1000 h 2310 kWh
Specific Eff. Radiant Power 60 mW/klm
Pinch Temperature 450 (max) °C
Bulb Temperature 1015 (max) °C

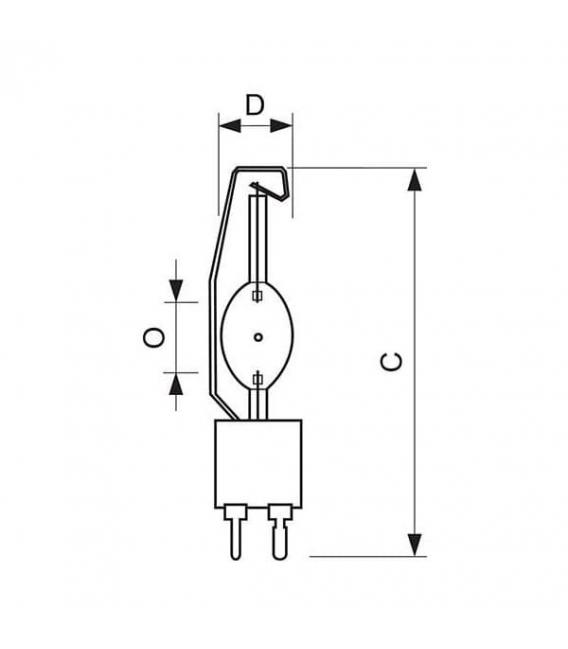

Overall Length C 198 (max) mm
Diameter D 41 (max) mm
Arc Length O 25 mmAllows compact, highly efficient luminaire systems with high ‑precision optics for good beam control and minimal light spill
• Very good color rendering creates a pleasant ambience with high visual comfort for players and spectators

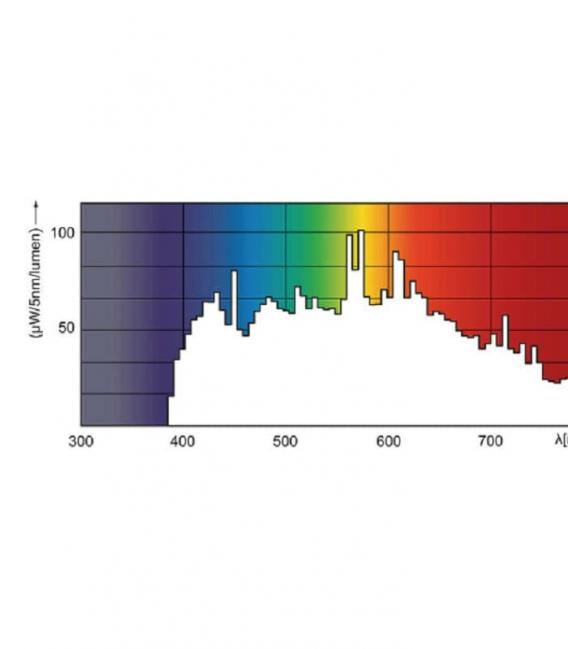

• Continuous spectral distribution offers a superior solution for professional stadiums with regular TV coverage

Features
• Single-pinch concept for superior optical performance
• High luminous efficacy
• Natural white color appearance, very good color rendering and good color stability
• Daylight color temperature eases transition from daylight to artificial lighting

Applications
• Professional sports lighting
