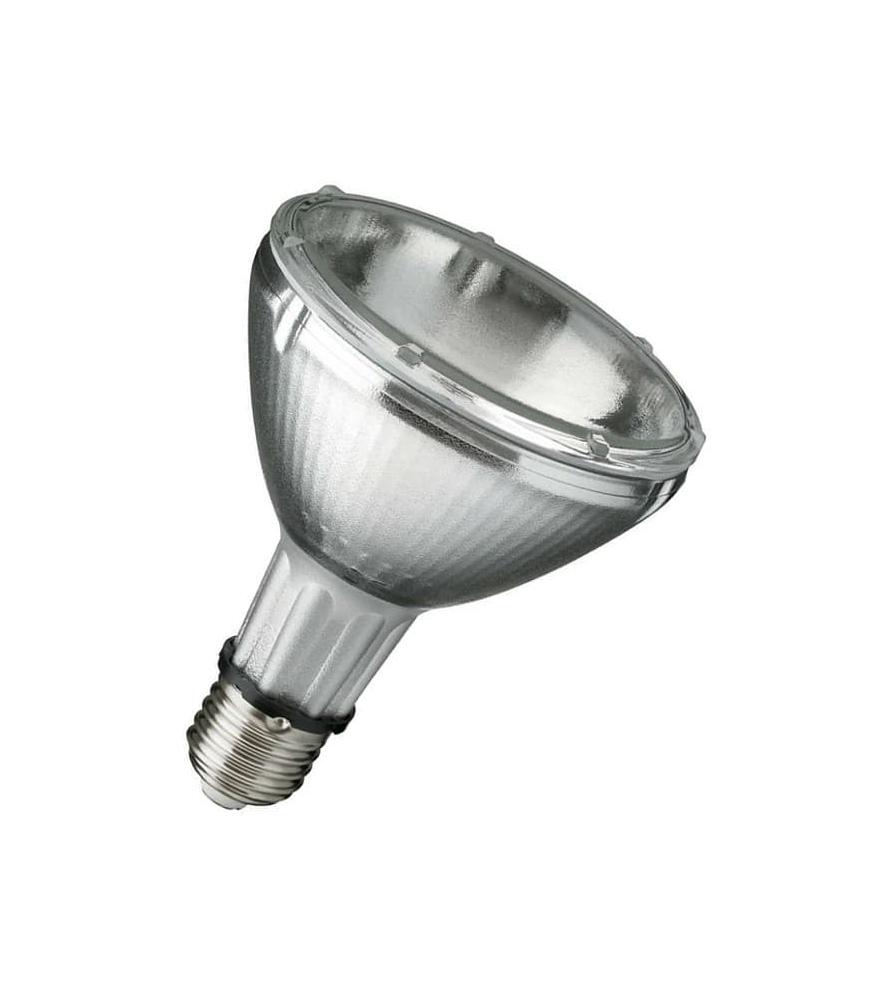

PAR MasterColour CDM-R 50W 942 Par30L E27 10D Elite

Cap-Base E27
Operating Position UNIVERSAL [ Any or Universal (U)]
Life To 5% Failures 9000 h
Life To 10% Failures 10000 h
Life To 20% Failures 12000 h
Life To 50% Failures 15000 h
Switching Cycle 1350X
Color Code 942 [ CCT of 4200 K]
Beam Angle 10°
Luminous Flux (Rated) 3550 lm
Luminous Intensity (Min) 36000 cd
Luminous Intensity 48000 cd
Beam Description Spot
Color Designation Cool White (CW)
Lumen Maintenance 12000 h 83%
Lumen Maintenance 2000 h 92%
Lumen Maintenance 4000 h 89%
Design Mean Lumens 3100 lm
Chromaticity Coordinate X 0.373
Chromaticity Coordinate Y 0.371
Correlated Color Temperature 4200 K
Luminous Efficacy (rated) 71 lm/W
Color Rendering Index (Min) 88
Color Rendering Index 91
LLMF At End Of Nominal Lifetime 80%
Luminous Flux In 90 °Cone (Rated) 3100 lm
Power (Rated) 50 W
Ignition Supply Voltage (Min) 198 V
Re-Ignition Time (Min) (Max) 15 min
Warm Up Time To 60% Light 120s
Ignition Time (Max) 30s
Voltage (Max) 102 V
Voltage (Min) 86 V
Voltage 94 V
Dimmable No
Run-Up Time 90% (Max) 3 min
Bulb Finish Clear
Energy Efficiency Label (EEL)A
Mercury (Hg) Content 5.7 mg
Energy Consumption kWh/1000 h 55 kWh
Bulb Temperature (Max) 300 °C
Cap-Base Temperature (Max) 200 °C
Overall Length C 123 (max) mm
Diameter D 97 (max) mm

Benefits
• High-efficiency lamp producing crisp white sparkling light that makes merchandise look irresistible
• Stable color and lumen output over life keeps your store attractive season after season
• Easy to install and replace, reducing installation and relamping costs

Features
• Crisp white sparkling light
• Excellent color rendering, with extra red
• High efficacy combined with unparalleled lumen maintenance
• Fits in simple open luminaires
• UV-blocking front glass

Applications
• Accent and display lighting retail
• General and decorative indoor lighting
