PL-S 9W 01 2P UV-B Narrowband

Cap-Base G23
Cap-Base Information 2 Pins
Bulb 2 × T12
Main Application Medical Therapy
Useful Life 1000 h
Life to 50% failures EM 1000 h
Color Code 01
Color Designation Ultra Violet B
Depreciation 500 hours 15%
Depreciation 1000 hours 20%
Lamp Wattage 9 W
Lamp Wattage Technical 9 W
Lamp Voltage 60 V
Lamp Current 0.17 A
UV-B Radiation 100 h (IEC) 1 W
UV-B Radiation 5hr (IEC) 1.2 W

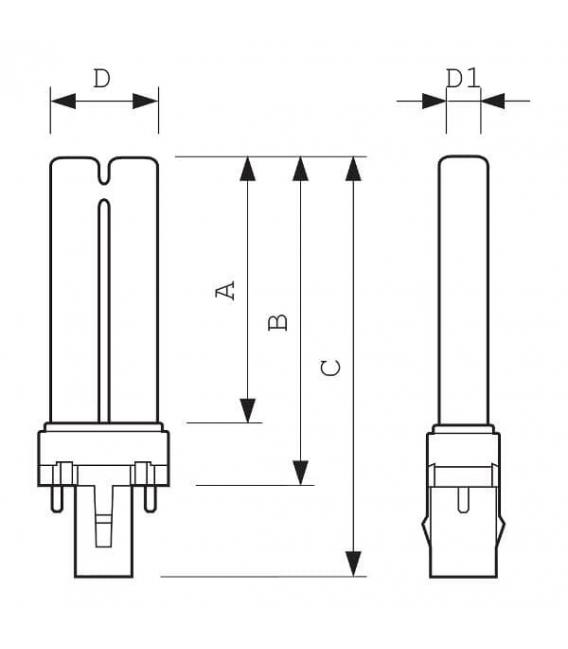

Base Face to Base Face A 129 (max) mm
Insertion Length B 144.5 (max) mm
Overall Length C 167 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm

World wide tested in more than 400 clinical tests

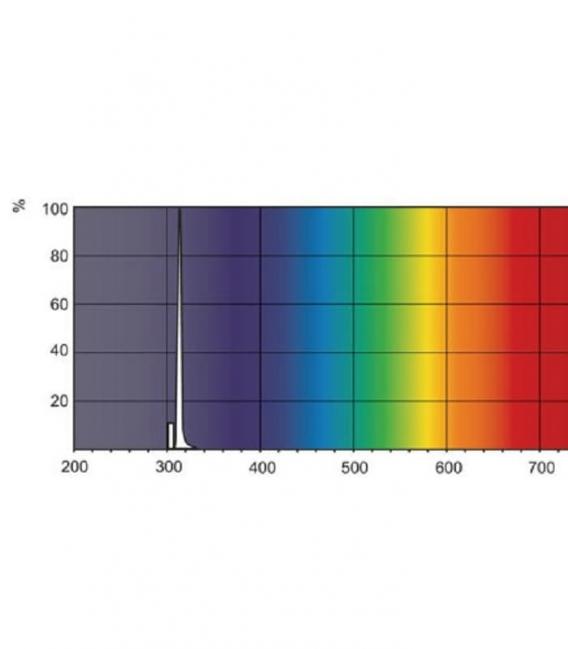

More than 400 independent clinical studies have proven that the UVB Narrowband PL-L/PL-S lamps are safer and more effective than any other lamps in their class. The PL-L/PL-S versions provide additional design freedom for system manufacturers since these are space-saving compact, single-ended lamps. Further flexibility is assured since they use the same lamp caps as general lighting lamps, they also use the same universal ballasts. Their best-in-class treatment effectiveness is a result of their very narrow waveband emission: between 305 and 315 nm with a peak at 311 nm. This is the most efficacious waveband for the treatment of psoriasis, and is therefore much more focused. As a result, exposure times are much shorter and this in turn leads to a reduction of side effects such as reddening of the skin and itching. All of this makes them ideal for phototherapy treatment of diseases such as psoriasis, parapsoriasis, vitiligo, atopic dermatitis, and mycosis fungoides. What’s more, because the overall dosage of this narrowband radiation can be closely controlled, these lamps are suitable for home therapy.

Features
• Emission peak at 311 nm
• Narrowband
• Special developed phosphor and glass

Applications
• Psoriasis, Parapsoriasis, Vitiligo, Atopic dermatitis, Mycosis fungoides, Other skin diseases
