Phototherapy
TL-D 18W 52 UV-B Medical Therapy Jaundice
834857 | Manufacturer: Philips | EAN: 8727900834857 | MPN: 928048005211
More info - TL-D 18W 52 UV-B Medical Therapy Jaundice Lamp Phototherapy Solution
TL-D 18W 52 UV-B Medical Therapy Jaundice - Say goodbye to blood transfusions with the compact and effective TL-D Phototherapy Lamp. Emitting light within the optimal treatment wavelength of 400...500 nm, this lamp is perfect for treating hyperbilirubinemia in newborns and Crigler-Najjar Syndrome. With an emission peak at 450 nm, it's a highly efficacious solution for jaundiced infants.
Cap-Base G13
Bulb T26
Main Application Medical Therapy
Life to 50% failures EM 13000 h
Color Code 52
Color Designation Medical
Chromaticity Coordinate X 157 -
Chromaticity Coordinate Y 75 -
Luminous Flux Lamp EL 395 lm
Lumen Maintenance 2000 h 85%
Lumen Maintenance 5000 h 70%
Lamp Wattage 18 W
Lamp Wattage Technical 18 W
Lamp Voltage 59 V
Lamp Current 0.365 A
Dimmable Yes
Mercury (Hg) Content 13 mg

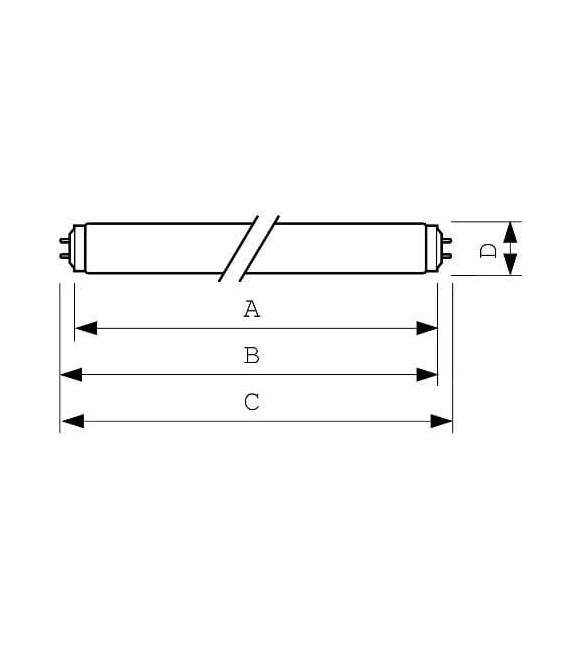

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm
Medical Therapy Jaundice TL-D - the compact way to eliminate the need for blood transfusions.

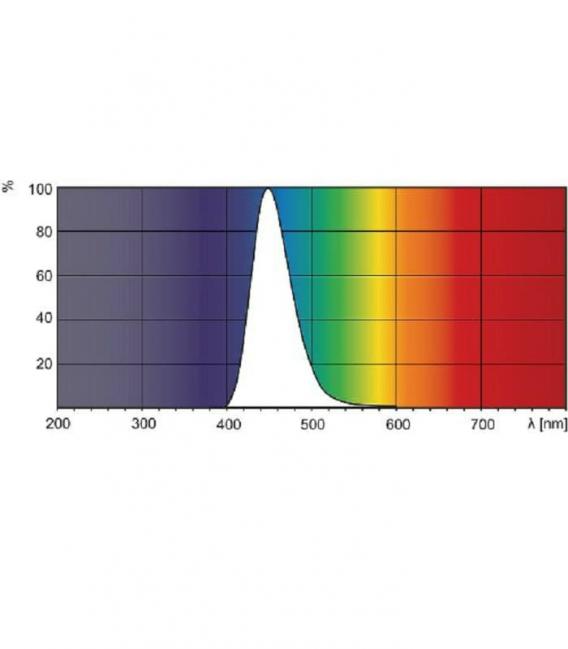

By emitting light almost entirely within the 400…500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.
Features
• Emission peak at 450 nm
Applications

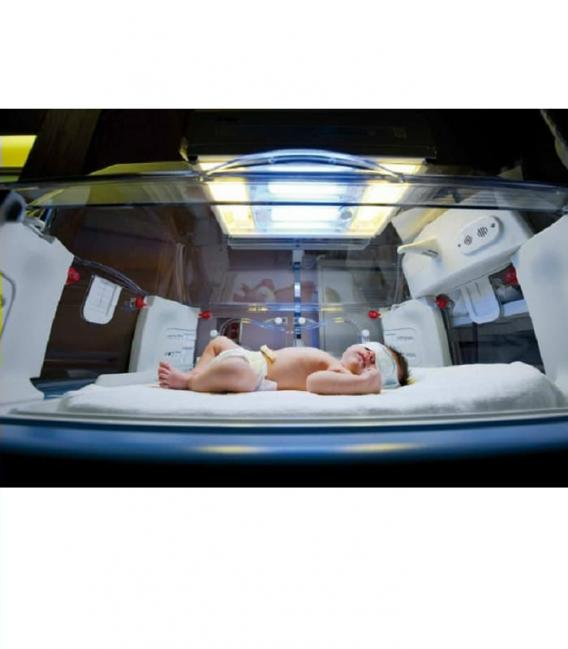

• Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
System
• Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems
