Phototherapy
TL-D 20W 52 SLV UV-A Medical Therapy Jaundice
643025 | Manufacturer: Philips | EAN: 8711500643025 | MPN: 928003505203
More info - TL-D 20W 52 SLV UV-A Lamp Medical Jaundice Therapy Solution
Phototherapy lamp TL-D 20W 52 SLV UV-A Medical Therapy Jaundice - Eliminate the need for blood transfusions with the compact and efficient TL-D Phototherapy Lamp. Ideal for treating neonatal jaundice and Crigler-Najjar Syndrome, this lamp emits light within the most effective treatment wavelength of 450 nm. Say goodbye to blood transfusions and hello to a safe and effective phototherapy treatment.
Cap-Base G13
Bulb T38
Main Application Medical Therapy
Useful Life 2000 h
Life to 50% failures EM 90000 h
Color Code 52
Color Designation Medical
Luminous Flux Lamp EM 330 lm
Lumen Maintenance 2000 h 85%
Lumen Maintenance 5000 h 75%
Lamp Wattage 20 W
Lamp Wattage Technical 19.3 W
Lamp Voltage 57 V
Lamp Current 0.36 A
Dimmable No
Mercury (Hg) Content 8 mg

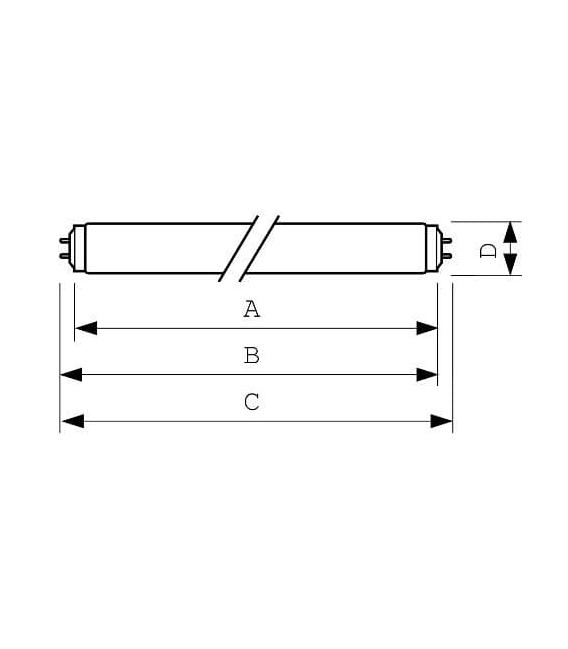

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 40.5 (max) mm
Medical Therapy Jaundice TL-D - the compact way to eliminate the need for blood transfusions.

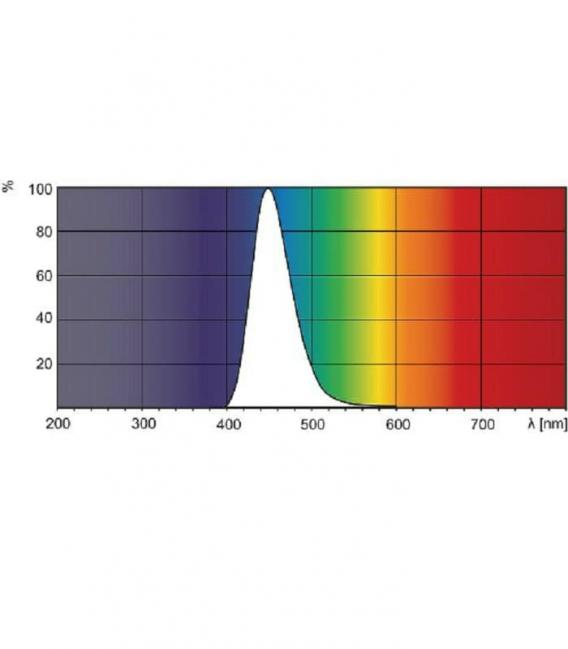

By emitting light almost entirely within the 400…500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.
Features
• Emission peak at 450 nm
Applications
• Medical treatment of jaundice in new-born babies (hyperbilirubinaemia), Crigler - Najjar (CN) syndrome
System
• Tubular lamps can be operated in normal switch-start as well as pre-heat rapid-start systems
