PL-L 2G11 UV-C sterilization
PL-L 24W 4P TUV UV-C 2G11
612953 | Manufacturer: Philips | EAN: 8718291212485 | MPN: 927903204016
More info - 24W TUV UV-C PL-L 4P Premium Sterilization Lamp 2G11
The PL-L 24W 4P TUV UV-C 2G11 Sterilization Lamp is a compact UV-C germicidal lamp used for disinfection in residential water and air units. Its small size allows for flexible system design, while offering constant UV output for maximum security and efficacy. With its easy lamp replacement and various features like protective coating and ozone-filtering glass, this lamp is perfect for deactivating bacteria, viruses, and other micro-organisms in various applications such as drinking water units, fish ponds, air treatment systems, and more.
Cap-Base 2G11
Cap-Base Information 4 Pins
Bulb 2 × T16
Main Application Disinfection
Useful Life 9000 h
Color Code TUV
Lamp Wattage 24 W
Lamp Wattage Technical 24 W
Lamp Voltage 87 V
Lamp Current 0.345 A
UV-C Radiation 7.1 W

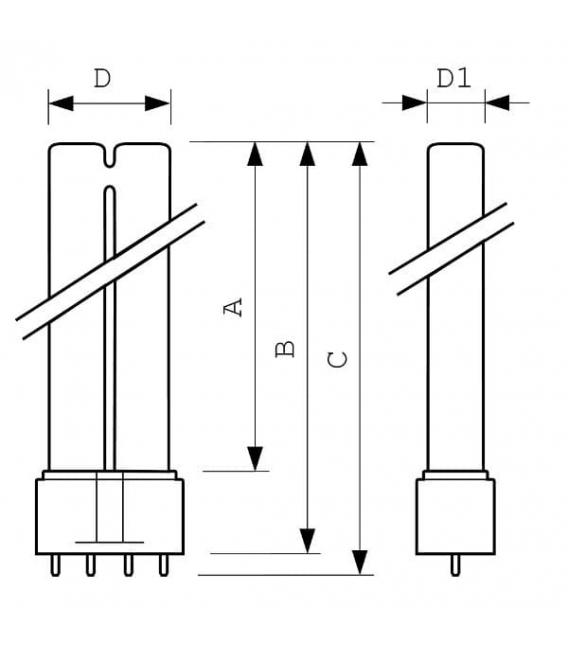

Base Face to Base Face A 290 (max) mm
Insertion Length B 315 (max) mm
Overall Length C 320 (max) mm
Diameter D 39 (max) mm
Diameter D1 18 (max) mm
TUV PL-L lamps are compact UVC germicidal lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Features

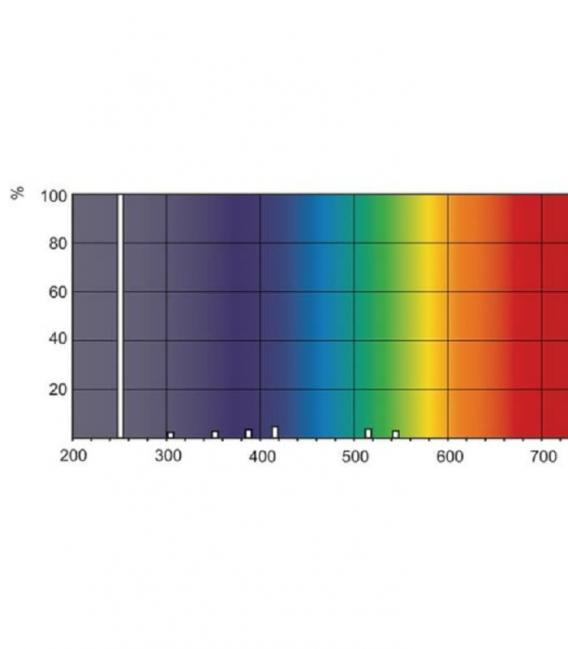

• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Special lamp glass filters out the 185 nm ozone-forming radiation
• High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
• High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
• Warning sign on lamp indicates that the lamp radiates UVC
Applications
• Deactivation of bacteria, viruses and other micro-organisms
• Residential drinking water units
• Fish pond and process water units
• In-duct air treatment units
• Stand alone air purifiers
• Air disinfection systems in for example hospitals, universities and laboratories
