R111 CDM 20W 830 GX8.5 24D

Cap-Base GX8.5
Bulb R111 [R 111 mm]
Bulb Finish Reflector
Operating Position any [Any or Universal (U)]
Life to 5% failures EL 6000 h
Life to 10% failures EL 7000 h
Life to 20% failures EL 8000 h
Life to 50% failures EL 9000 h
Beam Description Narrow Flood
Beam Angle 24 D
Beam Angle Technical 15 (min), 20 (nom), 25 (max) D
Luminous Intensity 5500 cd
Color Code 830 [CCT of 3000 K]
Color Rendering Index 88 Ra8
Color Designation Warm White
Color Temperature 3000 K
Color Temperature Technical 2900 K
Luminous Flux Lamp EL 650 lm
LLMF - end nominal lifetime 58%
Chromaticity Coordinate X 0.436 -
Chromaticity Coordinate Y 0.390 -
Luminous flux in 90° cone 600 lm
Lamp Wattage 20 W
Lamp Voltage 101 V
Lamp Current EL 0.22 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Warm-up Time to 60% Light Output 120s
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 2.4 mg
Energy consumption kWh/1000 h 24 kWh
Damage Factor D/fc 0.3 -
PET (NIOSH) 8 (min) h500 lx
Switching cycle 800 ×

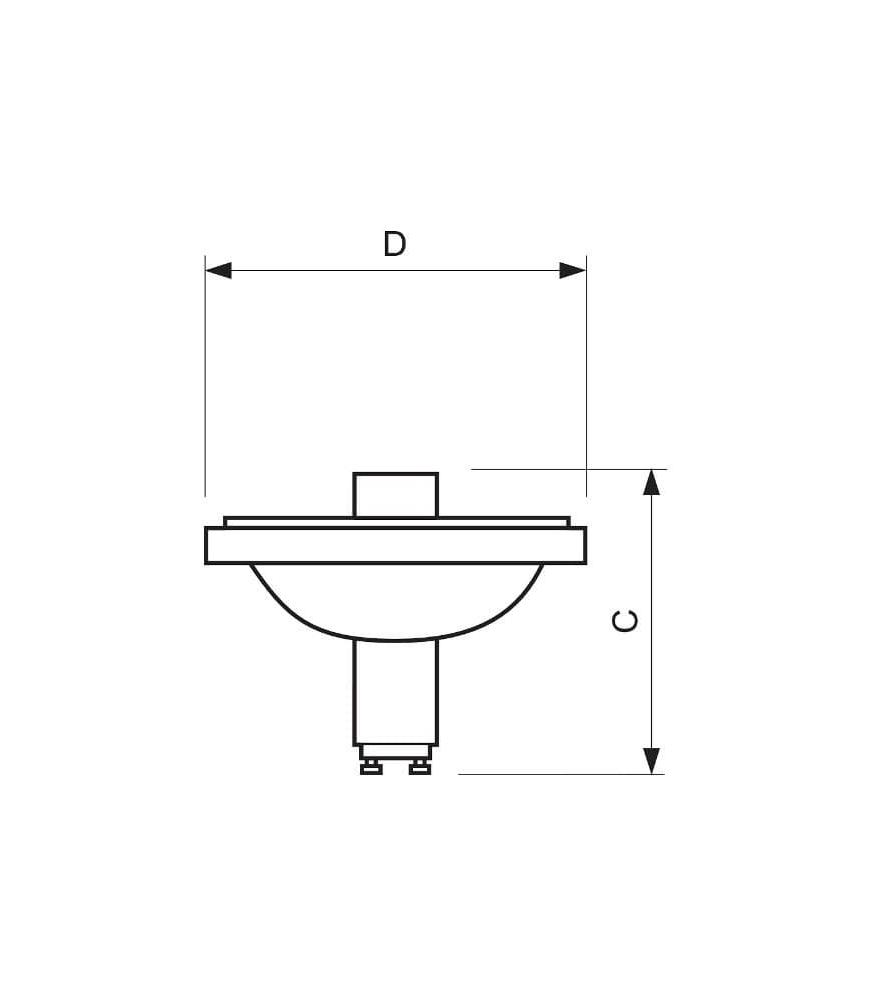

Overall Length C 95 (max) mm
Diameter D 111 (max) mm
Overall Length C [inch] 3.75 (max) in

Benefits
• Beautiful sparkle, trendy design
• Low operating costs
• Easy installation
• Relatively low heat output
• Less glare, comfort for shoppers and staff
• Reduced fading risks

Features
• High lamp efficacy
• Long lamp lifetime compared to incandescent and halogen lamps
• The ceramic discharge tube is optimally and stable positioned in the reflector
• Twist and Lock system
• UV-Block burner capsule
• Anti-glare cap design

Applications
• Accent and decorative lighting: display lighting with sparkling, theatrical effects, even in surroundings with very high background ambient light levels like shop windows
• General lighting: in downlighters, a warm and comfortable atmosphere can be created

General safety informations
