R111 CDM 35W 942 GX8.5 24D

Cap-Base GX8.5
Bulb R111 [R 111 mm]
Bulb Finish Reflector
Operating Position any [Any or Universal (U)]
Life to 5% failures EL 6000 h
Life to 10% failures EL 6500 h
Life to 20% failures EL 7000 h
Life to 50% failures EL 9000 h
Beam Description Narrow Flood
Beam Angle 24 D
Beam Angle Technical 18 (min), 23 (nom), 28 (max) D
Luminous Intensity 7500 cd
Color Code 942 [CCT of 4200 K]
Color Rendering Index 93 Ra8
Color Designation Cool White
Color Temperature 4200 K
Color Temperature Technical 4225 K
Luminous Flux Lamp EL 1350 lm
LLMF - end nominal lifetime 65%
Chromaticity Coordinate X 0.370 -
Chromaticity Coordinate Y 0.365 -
Luminous flux in 90° cone 1300 lm
Lamp Wattage 35 W
Lamp Voltage 88 V
Lamp Current EL 0.46 A
Ignition Time 30 (max) s
Run-up time 90% 3 (max) min
Re-ignition Time [min] 15 (max) min
Dimmable No
Warm-up Time to 60% Light Output 120s
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 43 kWh
Damage Factor D/fc 0.4 -
PET (NIOSH) 8 (min) h500 lx
Switching cycle 800 ×

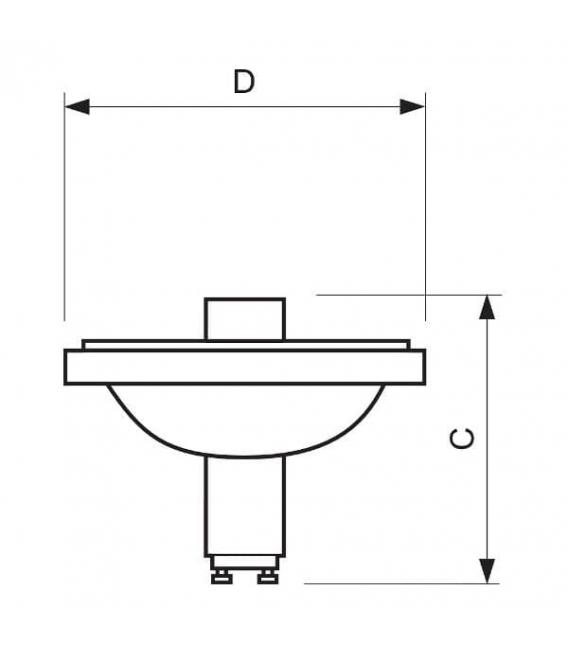

Overall Length C 95 (max) mm
Diameter D 111 (max) mm
Overall Length C [inch] 3.75 (max) in

Benefits
• Beautiful sparkle, trendy design
• Low operating costs
• Easy installation
• Relatively low heat output
• Less glare, comfort for shoppers and staff
• Reduced fading risks

Features
• High lamp efficacy
• Long lamp lifetime compared to incandescent and halogen lamps
• The ceramic discharge tube is optimally and stable positioned in the reflector
• Twist and Lock system
• UV-Block burner capsule
• Anti-glare cap design

Applications
• Accent and decorative lighting: display lighting with sparkling, theatrical effects, even in surroundings with very high background ambient light levels like shop windows
• General lighting: in downlighters, a warm and comfortable atmosphere can be created
