RX7s
RX7s HQI-TS 70W wdl excellence
964281 | Manufacturer: Osram | EAN: 4008321678300 | MPN: HQI-TS-70-WDL-EX
More info - 70W HQI-TS Excellence Lamp Premium RX7s Solution
The Powerstar HQI-TS 70W wdl excellence RX7s Metal Halide Lamp offers high efficiency, uniform light distribution, and excellent color rendering. With a long lifespan of 12000 hours and the ability to hot restrike, it is perfect for various applications such as shop interiors, museums, exhibition halls, parks, and gardens. This lamp features Powerstar quartz technology and comes in warm white (WDL) light color.
Nominal wattage 70 W
Nominal voltage 98 V
Lamp current 0.95 A
PFC capacitor at 50 Hz 12µF
Ignition voltage 3.6 / 5 kVp
Rated wattage 78 W
Rated lamp efficacy (standard condition) 76 lm/W
Energy consumption 86 kWh/1000 h
Rated luminous flux 5925 lm
Color rendering index Ra67
Color temperature 3300 K
Light color 630
Rated LLMF at 2000 h 0.68
UV protection Yes

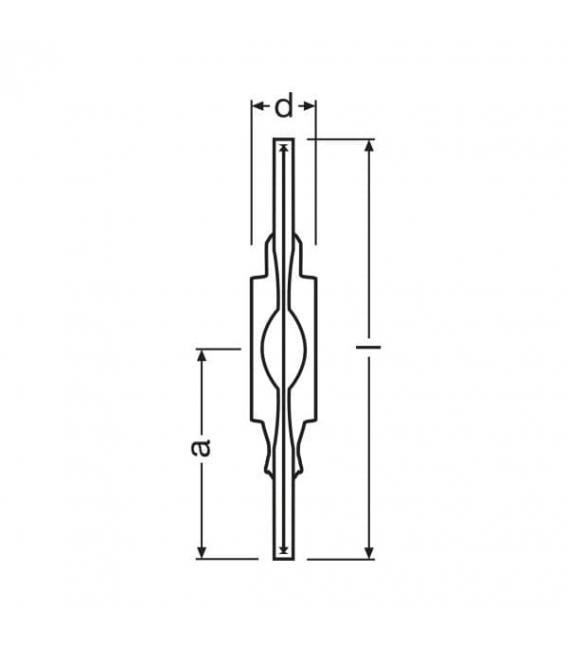

Diameter 19 mm
Length 117 mm
Light center length (LCL) 57 mm
Lamp mercury content 12.6 mg
Maximum permitted outer bulb temperature 500 °C
Maximum permitted pinch temperature 350 °C
Rated lamp survival factor at 2000 h 0.95
Rated lamp survival factor at 4000 h 0.90
Lifespan B50 12000 h
Base (standard designation) RX7s
Design / version Clear
Burning position p45
Enclosed luminaire required Yes
Hot restart Yes
Dimmable No
Energy efficiency class A
Benefits
• High efficiency
• Uniform distribution of light
• Good to excellent color rendering
• Long life time
• Hot restrike capable
• UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
• Shop interiors, shop windows
• Shopping arcades
• Foyers, reception areas
• Buildings, monuments, bridges
• Museums, exhibitions
• Exhibition halls and trade fairs
• Pedestrian zones, public squares
• Parks and gardens
• Approved only for use in enclosed luminaires
• Outdoor applications only in suitable luminaires
Features
• Powerstar quartz technology
• Light colors: warm white (WDL), neutral white (NDL), daylight (D), cool daylight (CD)
• Average lifetime: 12000 hours
