RX7s MHN TD 70W 842

Cap-Base RX7s
Cap-Base Information na
Bulb TD
Bulb Finish Clear
Operating Position p45 [Parallel ±45D or Horizontal(HOR)]
Life to 5% failures 5000 h
Life to 20% failures 8000 h
Life to 50% failures 10500 h
Color Code 842 [CCT of 4200 K]
Color Rendering Index 80 Ra8
Color Designation Cool White
Luminous Flux Lamp EM 5700 lm
Luminous Efficacy Lamp EM 76 lm/W
Lumen Maintenance 2000 h 85%
Lumen Maintenance 5000 h 80%
Lumen Maintenance 10000 h 75%
Luminance Average EM 1500 cd/cm²
Chromaticity Coordinate X 370 -
Chromaticity Coordinate Y 370 -
Lamp Wattage 70 W
Lamp Voltage 90 V
Lamp Current EM 1 A
Ignition Peak Voltage 1800 (min) V
Dimmable No
Energy Efficiency Label (EEL) A
Mercury (Hg) Content 11 mg
Energy consumption kWh/1000 h 82 kWh
Pinch Temperature 280 (max) °C
Bulb Temperature 500 (max) °C

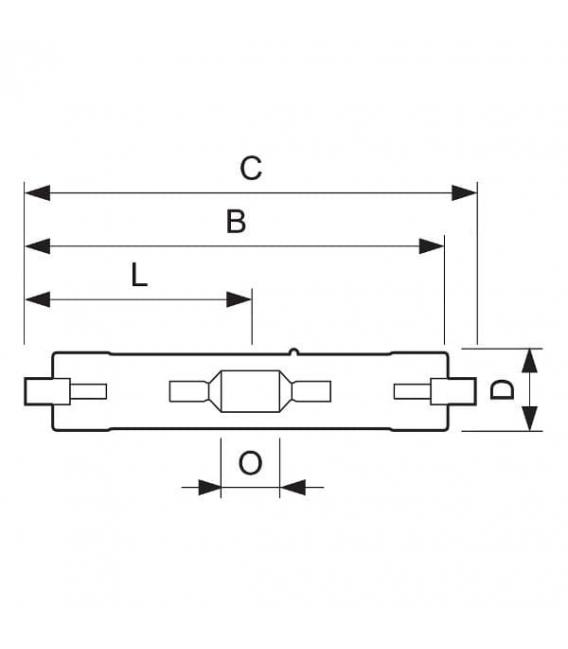

Insertion Length B 114.2 (max) mm
Overall Length C 117.6 (max) mm
Diameter D 19.5 (max) mm
Light Center Length L 57 mm
Arc Length O 7.7 mm
Light Center Length L [inch] 2.24 in
Overall Length C [inch] 4.63 (max) in
Diameter D [inch] 0.75 in

Benefits
• All types are UV-Block for reduced health and fading risks

Features
• Quartz discharge tube containing high-pressure mercury and a mixture of dysprosium, holmium and thulium halides (4200 K) or tin iodide (3000 K), with sodium and thallium added for color correction and arc stabilization
• Double-ended lamps housed in a tubular clear UV-Block quartz evacuated outer envelope
• Restricted burning position

Applications
• Indoors - accent lighting, general lighting in downlighters, e.g. in shops and malls
• Downlighters, uplighters and wall-washers, e.g. in shops and malls
• Outdoors - floodlighting monuments, facades and billboards
