Specialty Lamps and Bulbs
XBO 150W CR OFR SFc12 SFcX12
508788 | Manufacturer: Osram | EAN: 4050300508788 | MPN: XBO-150-CR-OFR
More info - XBO 150W CR OFR SFc12 SFcX12 Lamp Specialty
Introducing the Speciality Retrofit Lamp - XBO 150W CR OFR SFc12 SFcX12. Perfect for cinema projection, professional video projectors, event and architectural lighting, as well as fiber optics systems like endoscopy or surgical microscopy equipment. With a nominal wattage of 150W and a long lifespan of 3000/1200 hours, this lamp offers very high luminance and continual color quality. Its high arc stability and dimmable feature make it an ideal choice for any lighting needs. Remember to operate with appropriate safety measures in enclosed casings!
Nominal wattage 150 W
Lamp wattage 125-180 W
Lamp voltage 15-18 V
Lamp current 8.5 A
Type of current DC
Nominal luminous flux 2900 lm
Luminous flux 2900 lm
Luminous intensity 290 cd
Luminance 20000 cd/cm²
Length 150 mm
Mounting length 127 mm
Length with base excl. base pins/connection 127 mm
Light center length (LCL) 57 mm
Electrode gap cold 2 mm
Max. permitted ambient temp. pinch point 230 °C
Lifespan 3000 / 1200 h

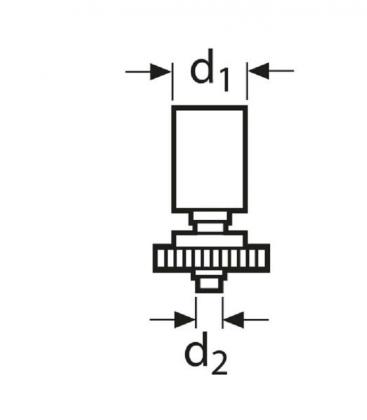

Base anode (standard designation) SFc12-4
Base cathode (standard designation) SFcX12-4
Cooling Forced
Burning position s15
Benefits
• Very high luminance (point light source)
• Continual color quality, irrespective of lamp type and lamp wattage
• Constant light color throughout the life of the lamp
• Long lamp life
Features
• Color temperature: approx. 6000 K (Daylight)
• High color rendering index: Ra > 95
• Continuous spectrum in the visible range
• High arc stability
• Hot restart capability
• Dimmable
• Instant light on starting
SAFETY ADVICE
Because of their high luminance, UV radiation and high internal pressure in both the hot and cold state, XBO lamps must only be operated in appropriate enclosed casings. Always use the protective jackets supplied when handling these lamps. They may only be used as open lamps if appropriate safety measures are taken. More information is available on request or can be found in the leaflet included with the lamp or the operating instructions.
