Specialty Lamps and Bulbs
HMI 575W seL XS UVS G22
152656 | Manufacturer: Osram | EAN: 4052899152656 | MPN: HMI 575 SEL
More info - UVS G22 Lamp HMI 575W seL XS Specialty Bulb
The Speciality Retrofit Lamp - HMI 575W seL XS UVS G22 is a reliable and high-performance light source perfect for studio, stage, and TV applications. With a color temperature of 6000K and a color rendering index of over 90, this lamp provides exceptional lighting quality. Its dimmable feature and hot restart capability make it versatile for various settings. Please note that safety precautions must be taken when operating this lamp due to its high luminance and internal pressure.
Nominal wattage 575 W
Nominal voltage 100 V
Lamp voltage 95 V
Nominal current 76.9 A
Nominal luminous flux 49000 lm
Luminous flux 49000 lm
Color temperature 6000 K
Color rendering index Ra › 90

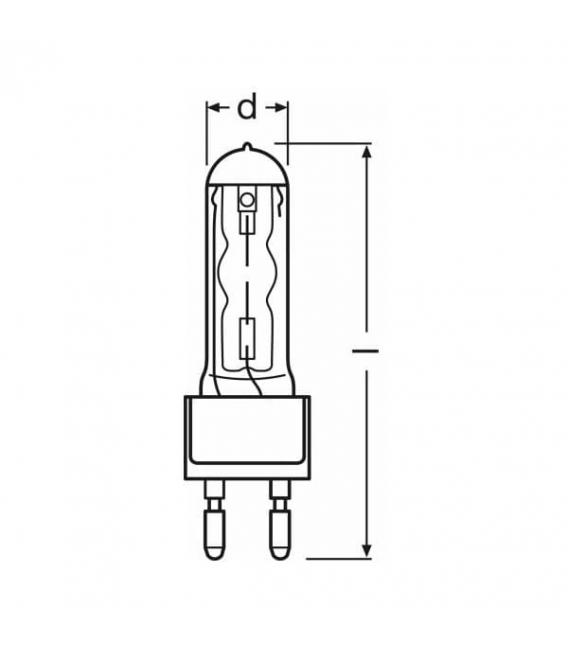

Diameter 30 mm
Length 145 mm
Light center length (LCL) 70 mm
Lifespan 1000 h
Base (standard designation) G22
Burning position Any
Benefits
• Very high luminous efficacy of up to 100 lm/W
Areas of application
• Film and television recording in daylight conditions, in the studio or outdoors
• Film and TV production (high-wattage lamps)
• Stage (lighting for dramatic effect)
• Entertainment
Features
• Color temperature: approx. 6000 K (Daylight)
• Dimmable
• Hot restart capability
• High color rendering index: Ra > 90
SAFETY ADVICE
Because of their high luminance, UV radiation (does not apply to HMI UVS) and high internal pressure during operation, HMI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation of standard HMI lamps is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
