Specialty Lamps and Bulbs
XBO 450W 2 OFR SK19
082626 | Manufacturer: Osram | EAN: 4008321082626 | MPN: XBO-450-2
More info - XBO 450W 2 OFR SK19 Lamp Specialty
Introducing the Speciality Retrofit Lamp XBO 450W 2 OFR SK19. Perfect for cinema projection, professional video projectors, and architectural lighting. With a short arc and high luminance, it provides brighter screen illumination. Enjoy a constant color temperature of 6000K throughout its lifespan. Easy to maintain with high arc stability and instant light on screen thanks to hot restart function. Ideal for classic film projection, digital film/video projection, and sunlight simulation. Color temperature: approx. 6000K (Daylight). Wattage: 1200-8000W with excellent color rendering index of Ra >96.
Nominal wattage 450 W
Lamp voltage 17 V
Nominal current 18 A
Lamp current 25 A
Current control range 17…30 A
Nominal luminous flux 13000 lm

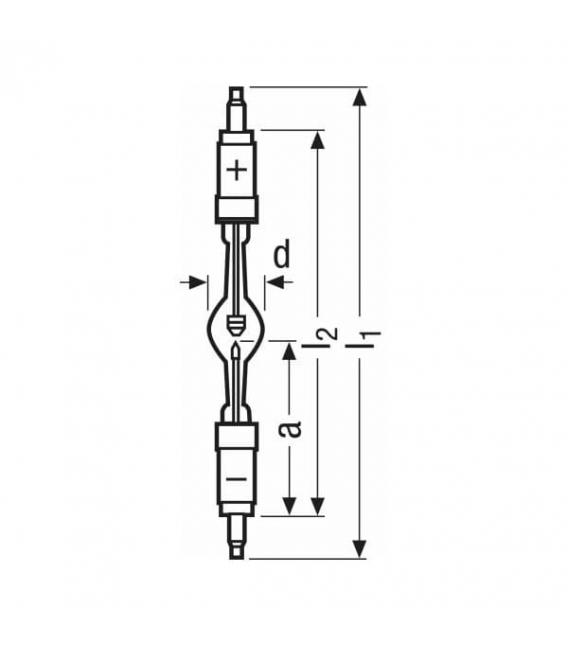

Diameter 29 mm
Length 177 mm
Length with base excl. base pins/connection 177 mm
Light center length (LCL) 79 mm
Electrode gap cold 3 mm
Max. permitted ambient temp. pinch point 230 °C
Lifespan 2000 h
Base anode (standard designation) SK19/36
Base cathode (standard designation) SK19/36
Product remark OFR = Ozone-free version
Cooling Forced
Burning position s30
Benefits
• Short arc with very high luminance for brighter screen illumination
• Constant color temperature of 6000 K throughout the entire lamp lifetime
• Easy to maintain
• High arc stability
• Instant light on screen thanks to hot restart function
• Wide dimming range
Areas of application
• Classic 35 mm film projection
• Digital film and video projection
• Architectural and effect light (“Light Finger”)
• Sunlight simulation
Features
• Color temperature: approx. 6000 K (Daylight)
• Wattage: 1200…8000 W
• Very good color rendering index: Ra > 96
