PE175BF Cermax Xenon Arc Lamp
PE175BF | Manufacturer: Excelitas | MPN: PE175BF
More info - PE175BF Cermax Xenon Arc Premium Specialty Lamp
The Speciality Retrofit Lamp PE175BF Cermax Xenon Arc Lamp is a cutting-edge lighting solution for various applications. With its integrated ell parabolic reflector, it provides high-intensity output of ultraviolet , visible, and infrared radiation. This lamp is widely used in medical endoscopes, projection display systems, and other high-performance settings. Its compact design and rugged construction make it the safest alternative to traditional quartz xenon lamps. Illuminate your world with the power of Cermax Xenon technology.
Operational Specifications:
Power (nominal) 175 W
Power (range) 150 - 200 W
Current (nominal) 14 amps (DC)
Current (range) 12-16 amps (DC)
Operating Voltage (nominal) 12.5 V (DC)
Operating Voltage (range) 11-14 V (DC)
Ignition Voltage 23 kV (recommended minimum)
Temperature 150 °C (maximum)
Lifetime 1000 hours
Output at Nominal Power:
Radiant Output 25 W
UV Output 1.2 W
IR Output 14 W
Visible Output 2200 Lumens
Color Temperature 5600 K
Peak Instabilities 4%

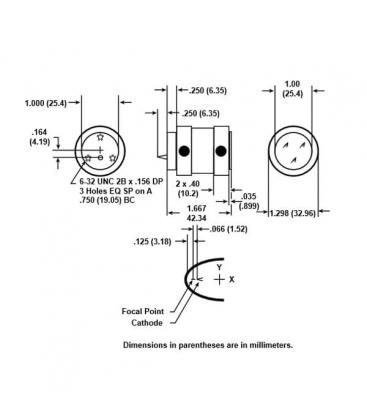

Physical Specifications:
Arc Gap 0.045 inch (1.14 mm)
Window Diameter 1 inch (25.4 mm)
The PE175BF and PE175BUV Cermax® lamps have an integrated ell parabolic reflector, enabling high intensity, focused output of ultraviolet, visible, and infrared radiation. With their internal reflector and rugged ceramic body construction, Cermax® lamps are the safest and most compact alternative to conventional quartz xenon lamps. This makes them ideal for applications that require a high degree of illumination control.
Current-regulated or power-regulated power supplies with output ripples of less than 5% are recommended. Single shot ignition pulses are advised because radio frequency starters may damage the lamps internal reflector.
Applications
• Medical and industrial fiber optic illuminators
• Machine vision
• Infrared and visible spotlights/beacons
• Spectroscopy
• Microscopy
• UV Curing
• Video projection
