Master TL-D 90 18W 950 G13 Graphica

Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 10% fail Preheat EL,3h 17000 h
Life to 10% fail Brez predgretja EL,3h 10000 h
Life to 50% failures EM 15000 h
Life to 50% fail Preheat EL,3h 20000 h
Color Code 950 [CCT of 5000 K]
Color Rendering Index 97 Ra8
Color Designation Daylight
Color Temperature 5300 K
Luminous Flux EM 25 °C, Rated 950 lm
Luminous Flux EM 25 °C, Nominal 950 lm
Luminous Efficacy Rated EM 25 °C 52.8 lm/W
Luminance Average EM 0.80 cd/cm²
LLMF EM 2000 h Rated 93%
LLMF EM 4000 h Rated 90%
LLMF EM 6000 h Rated 88%
Design Temperature 25 C
Chromaticity Coordinate X 342 -
Chromaticity Coordinate Y 352 -
Lamp Wattage 18 W
Lamp Wattage EM 25 °C, Nominal 18 W
Lamp Wattage EM 25 °C, Rated 18 W
Lamp Voltage EM 25 °C 59 V
Lamp Current EM 25 °C 0.360 A
Dimmable Yes
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 22 kWh

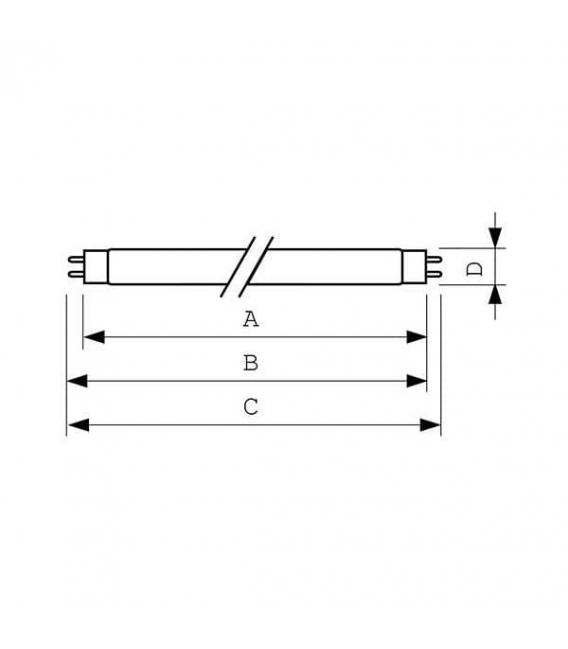

Base Face to Base Face A 589.8 (max) mm
Insertion Length B 594.5 (min), 596.9 (max) mm
Overall Length C 604 (max) mm
Diameter D 28 (max) mm

Benefits
• Making representation of colors extremely realistic
• Consistent with the strict standards for the graphical industry defined in standard EN-12464
• Enabling customer to switch to excellent color rendering properties with low decrease of light level

Features
• High-quality fluorescent coating for excellent color rendering and very accurate color point
• Use of mix of three-band phosphors and halophosphates for high efficacy
• Retrofit in current luminaires for standard TL-D lamps

Applications

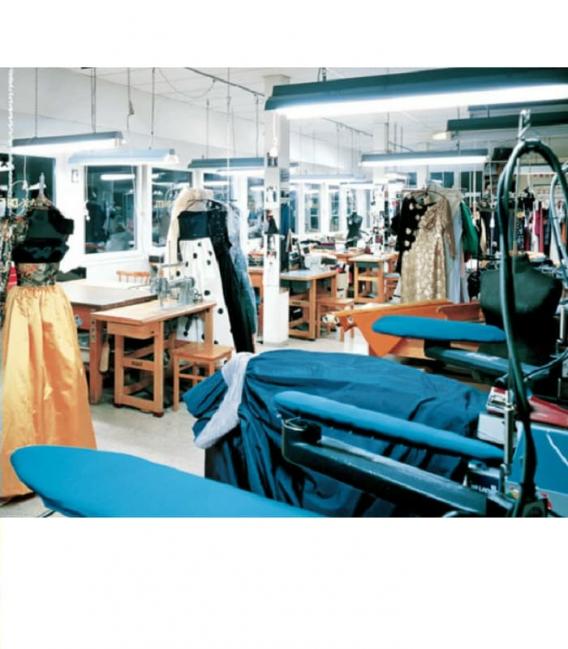

• Used in applications where excellent color rendering is crucial, such as the graphical industry, printing industry, photo shops, hospitals, etc.

General safety informations
