T8 full-spectrum fluorescent lamps
Master TL-D 90 58W 950 G13 Graphica
888754 | Manufacturer: Philips | EAN: 8711500888754 | MPN: 928044795081
More info - Master TL-D 90 58W 950 G13 Graphica Performance
The Master TL-D 90 58W 950 G13 Graphica is a high-quality fluorescent bulb that delivers excellent color rendering and accurate color point. With its three-band phosphors and halophosphates, it offers high efficacy and can be easily retrofitted in standard TL-D lamps. Ideal for applications where realistic colors are essential, such as the graphical industry, printing industry, photo shops, hospitals, etc. Upgrade to this bulb for exceptional color representation without compromising light levels.
Cap-Base G13 [Medium Bi-Pin Fluorescent]
Bulb T8 [26 mm]
Life to 10% failures EM 12000 h
Life to 10% fail Preheat EL,3h 17000 h
Life to 10% fail Brez predgretja EL,3h 10000 h
Life to 50% failures EM 15000 h
Life to 50% fail Preheat EL,3h 20000 h
Color Code 950 [CCT of 5000 K]
Color Rendering Index 97 Ra8
Color Designation Daylight
Color Temperature 5300 K
Luminous Flux EM 25 °C, Rated 3670 lm
Luminous Flux EM 25 °C, Nominal 3670 lm
Luminous Efficacy Rated EM 25 °C 62.7 lm/W
Luminance Average EM 1 cd/cm²
LLMF EM 2000 h Rated 93%
LLMF EM 4000 h Rated 90%
LLMF EM 6000 h Rated 88%
Design Temperature 25 C
Chromaticity Coordinate X 340 -
Chromaticity Coordinate Y 351 -
Lamp Wattage 58 W
Lamp Wattage EM 25 °C, Nominal 58 W
Lamp Wattage EM 25 °C, Rated 58.5 W
Lamp Voltage EM 25 °C 111 V
Lamp Current EM 25 °C 0.670 A
Dimmable Yes
Energy Efficiency Label (EEL) B
Mercury (Hg) Content 3 mg
Energy consumption kWh/1000 h 69 kWh

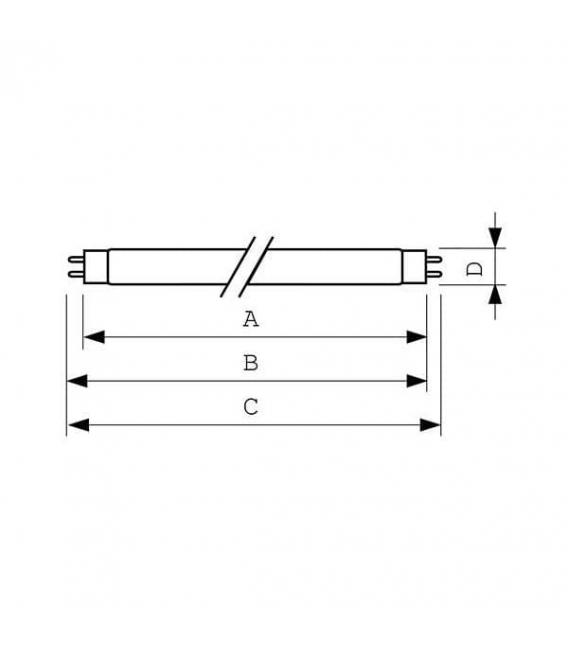

Base Face to Base Face A 1500 (max) mm
Insertion Length B 1504.7 (min), 1507.1 (max) mm
Overall Length C 1514.2 (max) mm
Diameter D 28 (max) mm
Benefits
• Making representation of colors extremely realistic
• Consistent with the strict standards for the graphical industry defined in standard EN-12464
• Enabling customer to switch to excellent color rendering properties with low decrease of light level
Features
• High-quality fluorescent coating for excellent color rendering and very accurate color point
• Use of mix of three-band phosphors and halophosphates for high efficacy
• Retrofit in current luminaires for standard TL-D lamps
Applications
• Used in applications where excellent color rendering is crucial, such as the graphical industry, printing industry, photo shops, hospitals, etc.
