Traffic signal lamps
62165 50W 10V BA15d
037718 | Manufacturer: Osram | EAN: 4008321037718 | MPN: 62165
More info - 50W 10V BA15d Lamp 62165 Traffic Signal Use
The Traffic Signal Lamp 62165 50W 10V BA15d is a low-voltage halogen lamp with a high luminous flux. Its almost point-like light source ensures optimum focusing, while maintaining a virtually constant luminous flux throughout its long life of 2000 hours. Perfect for road traffic signalling systems, this lamp must be used in specially designed signal equipment/luminaires and protected against moisture during operation. Handle with care using the protective cardboard sleeve provided.
Nominal wattage 50 W
Nominal voltage 10 V
Test voltage 10 V
Nominal luminous flux 820 lm

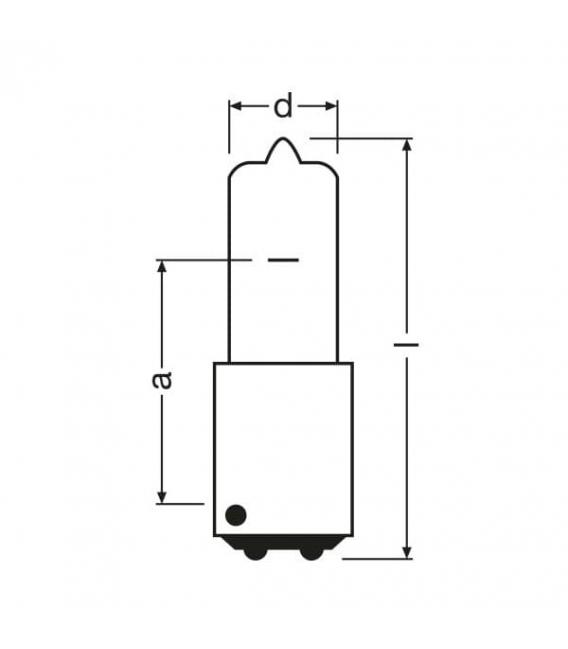

Diameter 11.5 mm
Overall length 50 mm
Light center length (LCL) 26 mm
Nominal lamp life time 2000 h
Base (standard designation) BA15d
Burning position p90
Benefits
• Low-voltage halogen lamps, therefore particularly high luminous flux
• Almost point-like light source for optimum focusing
• Virtually constant luminous flux throughout the life of the lamp
• Extremely long life compared to conventional lamps
Areas of application
• Road traffic signalling systems
Operating instructions
All halogen signal lamps operate at high temperature and pressure. They may therefore only be operated in signal equipment/luminaires specially designed for the purpose. Make sure that the lamps are protected against moisture during operation and in particular during relamping. When installing a new lamp, handle it by its protective cardboard sleeve.
