PL-S 9W BLB 2P G23

Cap-Base G23
Cap-Base Information 2 Pins
Bulb 2 × T12
Main Application Blacklight Blue
Useful Life 3000 h
Color Code 108 [08 lead free glass]
Color Designation Blacklight Blue
Lamp Wattage 9 W
Lamp Wattage Technical 8.6 W
Lamp Voltage 60 V
Lamp Current 0.17 A
Mercury (Hg) Content 3 mg
UV-A Power (IEC) 1.65 W
UV-B/UV-A (IEC) 0.2%

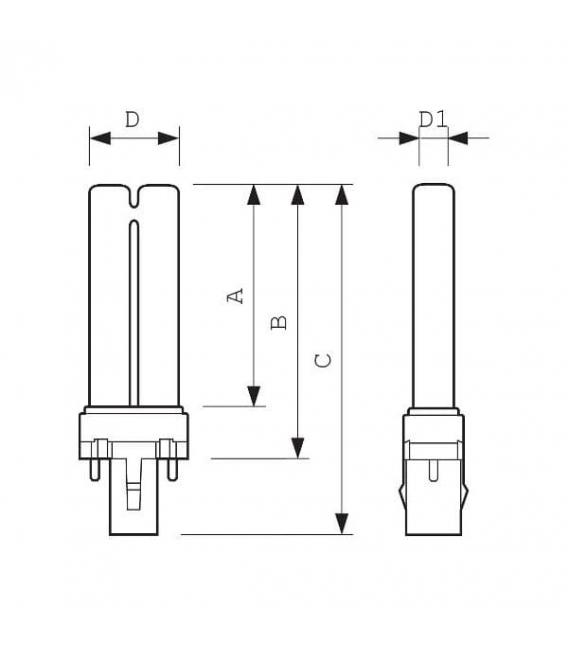

Base Face to Base Face A 129 (max) mm
Insertion Length B 145 (max) mm
Overall Length C 167.5 (max) mm
Diameter D 28 (max) mm
Diameter D1 13 (max) mm
PL-S Blacklight Blue is a special low-wattage compact fluorescent lamp emitting long wave UV radiation for detection and analysis purposes in archaeology, money checking, forensic science, food industry, medicine, mineralogy, philately as well for special effects in night clubs, discos, theatres and sign lighting. The 2-pin version is designed for operation on electromagnetic gear, the 4-pin version is designed for operation on electronic gear. Both versions are provided with a plug-in/pull-out lamp base.

Features
• Long wave UV fluorescent phosphor technology
• 2-pin version: 2-pin base with a housing incorporating the special instant starter and capacitor
• 4-pin version: 4-pin base

Applications
• Detection and analysis in the textile and chemical industries
• Banking and forensic science
• Special effects in night clubs, discos and theatres, and sign lighting

General safety informations
