UV-A Reprography
HTC-1000 241W 220V KY10s
694690 | Manufacturer: Osram | EAN: 4008321694690 | MPN: HTC-1000-221
More info - HTC-1000 241W 220V KY10s Efficiency UV-A Lamp
UV-A Reprography Lamp Supratec HTC-1000 241W 220V KY10s: High-pressure UV lamp for curing plastic, drying paint, gluing, exposing film/print masters, aging materials, and fluorescence excitation. Ideal for large area applications. Note: SUPRATEC lamp emit intense UV radiation that can cause sunburn and eye irritation. Use in closed fixtures only to avoid direct or reflected exposure.
Nominal wattage 1000 W
Nominal voltage 230 V
Construction voltage 230 V
Radiated power 315…400 nm (UVA) 240 W
Radiated power 280…315 nm (UVB) 40 W

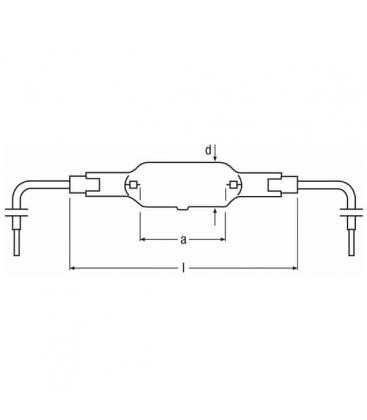

Diameter 28 mm
Length 140 mm
Light center length (LCL) 48 mm
Arc length 48 mm
Cable length 360 mm
Lifespan 800 h
Base (standard designation) KY10s
Connector: Presence Yes
Burning position s180
Applications
• Curing large areas of plastic
• Drying paint and varnishes
• Glue curing
• Exposure of diazo film material and print masters
• Artificial material aging
• Fluorescence excitation (with black glass filters)
• Curing large areas of plastic
Features
• SUPRATEC UV high pressure lamps for technical applications
ATTENTION
SUPRATEC lamps emit UV radiation of high intensity which can cause sunburn and conjunctivitis. Skin or eyes must not be exposed to direct or reflected unfiltered radiation! Operate in closed fixtures only.
