2G11 – Linear
CorePro PLL HF 16.5W 840 4P 2G11
739747 | Manufacturer: Philips | EAN: 8718696739747 | MPN: 929001381602
More info - CorePro LED Lamp PLL HF 16.5W 840 2G11
Upgrade your lighting with the CorePro LED lamp PLL HF 16.5W 840 4P 2G11. This energy-efficient lamp offers a longer lifetime and lower maintenance costs compared to conventional lamps. With no flickering or stroboscoping effect, it provides high-quality light instantly. Choose from three color options (3000K, 4000K, and 6500K) for various applications in hospitality, retail, offices, and industrial areas. Upgrade your luminaires effortlessly with this easy-to-install LED lamp.

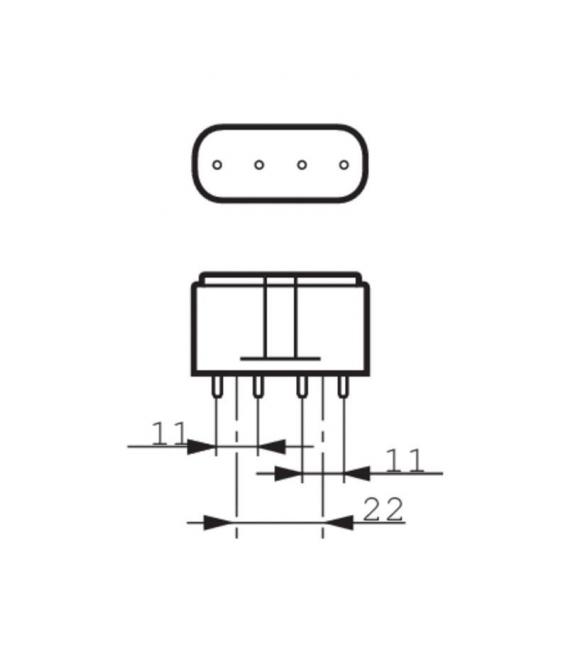

Cap-Base 2G11 [ 2G11]
Nominal Lifetime 30000 h
Switching Cycle 50000 ×
B50L70 30000 h
Color Code 840 [ CCT of 4000 K]
Luminous Flux 2100 lm
Luminous Flux (Rated) 2100 lm
Correlated Color Temperature 4000 K
Color Consistency <6
Color Rendering Index 83
LLMF At End Of Nominal Lifetime 70%
Input Frequency 39000 - 71000 Hz
Power (Rated) 16.5 W
Lamp Current (Max) 420 mA
Lamp Current (Min) 290 mA
Starting Time 0.5s
Warm Up Time to 60% Light 0.5s
Voltage 53-77 V
T-Ambient (Max) 45 °C
T-Ambient (Min) –20 °C
T-Storage (Max) 60 °C
T-Storage (Min) –40 °C
T-Case Maximum 70 °C
Dimmable No
Product Length 400 mm
Energy Saving Product Yes
Energy Efficiency Label (EEL) A+
Approval Marks TUV, CE marking, RoHS compliance, KEMA Keur certificate
Energy Consumption kWh/1000 h 20 kWh

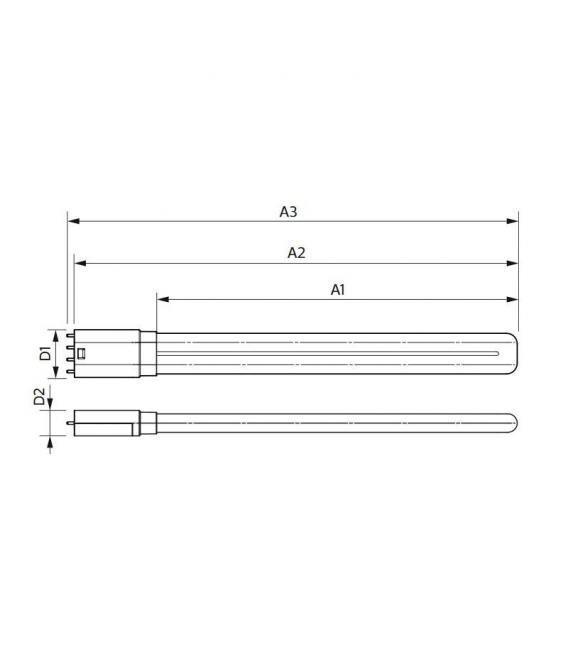

Base Face to Base Face A1 329.5 (max) mm
Insertion Length A2 405 (max) mm
Overall Length A3 411.6 (max) mm
Diameter D1 43.6 (max) mm
Diameter D2 23.4 (max) mm
Benefits
• Reduced operational cost thanks to a lower energy consumption than conventional PLL lamps, as well as lower maintenance cost thanks to a 2-3 times longer lifetime than conventional lamps
• Simple lamp-for-lamp replacement, re-using the existing fixture without major modifications, using a similar PLL form-factor
• Fastest and easiest way to upgrade existing luminaires to Led technology
Features
• High quality of light, no flickering nor stroboscoping effect
• Instant 100% light
• Choice of 3000 K, 4000 K & 6500 K
Applications
• Hospitality
• Retail
• Office (stairways, corridors)
• Industrial areas
