2G11 – Linear

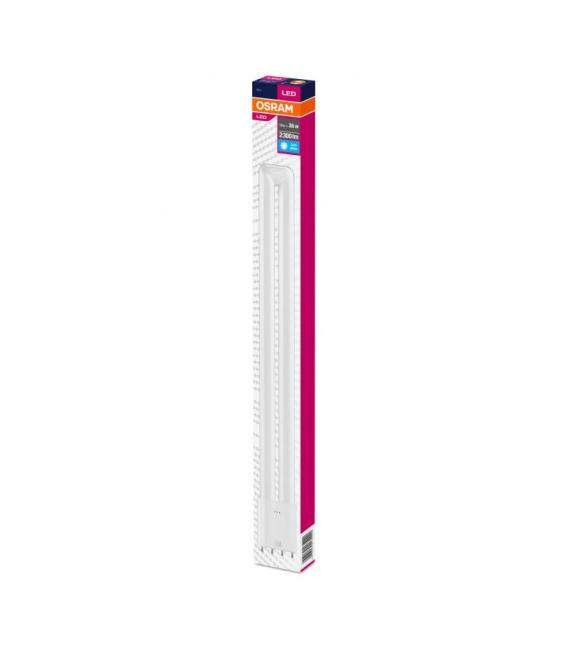

Dulux L HF 18W 840 4P 2G11
135420 | Manufacturer: Osram | EAN: 4058075557833 | MPN: DULUX-L36LED-18-4000K
More info - LED Lamp Dulux L HF 18W 840 2G11
The LED lamp Dulux L HF 18W 840 4P 2G11 is a quick, simple, and safe replacement for conventional compact fluorescent lamps . With low energy consumption and a lifetime of up to 30,000 hours, this mercury-free lamp offers efficient illumination. Suitable for general lighting in offices, public buildings, shops, supermarkets, hotels, restaurants, and industrial settings within ambient temperatures from -20°C to 35°C. Its double-turn tubes and IP20 protection make it a reliable choice. Please note that it is not suitable for operation with low-loss or conventional control gears.
Rated wattage 18 W
Nominal wattage 18 W
Nominal voltage 220 - 240 V
Operating frequency 50 - 60 Hz
Power factor λ > 0.90
Nominal luminous flux 2300 lm
Rated luminous flux 2300 lm
Rated color temperature 4000 K
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Luminous flux 2300 lm
Color rendering index Ra≥80
Standard deviation of color matching ≤6 sdcm
Color rendering index Ra≥80
Warm-up time (60%) < 0.5s
Starting time < 0.5s
Overall length 413.4 mm
Diameter 43.8 mm
Length 413.4 mm
Ambient temperature range –20…+35 °C
Maximum temperature at tc test point 65 °C
Nominal lamp life time 30000 h
Rated lamp life time 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service life 0.70
Base (standard designation) 2G11
Mercury content 0 mg
Mercury-free Yes
Show WEEE picto Yes
Dimmable No
Energy efficiency class A++
Energy consumption 18 kWh/1000 h
Benefits
• Quick, simple and safe replacement
• Simple replacement thanks to similar design as conventional compact fluorescent lamps
• Low energy consumption
Applications
• General illumination within ambient temperatures from –20…+35 °C
• Offices, public buildings
• Shops
• Supermarkets and department stores
• Hotels, restaurants
• Industry
• Outdoor applications only in suitable luminaires
Features
• Led replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
• Single-ended four-pin plug-in 2G11 base
• Short and compact pin-base lamp with double-turn tubes
• Type of protection: IP20
• Lifetime: up to 30000 h
• Mercury-free lamps
SAFETY ADVICE
• Only suitable for temperatures of up to 35 °C inside of the luminaire.
• Always check the latest update of the compatibility list available on Hyperlink>
• Not suitable for operation with low-loss and conventional control gears
List of electronic control gears (ECG) that have been tested and proven to be compatible with DULUX L LED lamps.
