HF P 149 TL5 HO III 220V

Application code III
Type Version IDC
Rated Lamptype TL5 HO
Rated Number of Lamps 1 piece/unit
Number Of Products On MCB (16 A Type B) 28
Automatic Restart Yes
Input Voltage 220 - 240 V
Input Frequency 50 - 60 Hz
Operating Frequency 46 kHz
Ignition Method Programmed Start
Crestfactor (Max) 1.7
Power Factor 100% Load 0.99
Ignition Time (Max) 0.9 s
Mains Voltage Performance (AC) -8%…+6%
Mains Voltage Safety (AC) –10%…+10%
Earth Leakage Current 0.5 mA
Inrush Current Width 0.25 ms
Constant Wattage Deviation -2% /+2%
Ballast Factor 0.925
Power Losses 3.5 W
Inrush Current Peak (Max) 24 A
Connector Type Input Terminals WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable Capacity Output Wires Mutual 200 pF
Connector Type Output Terminals WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
Cable Length Hot Wiring 0.75 m
Wire Striplength 8.0-9 mm
Dual Fixture Master/Slave Not applicable [ Master/Slave oper. not applicable]
Input Terminal Cross Section 0.50 - 1 mm²
Output Terminal Cross Section 0.50 - 1 mm²
Cable Capacity Output Wires To Earth 200 pF
Rated Ballast-Lamp Power 49 W
Rated Lamp Power On TL5 49 W
System Power On TL5 53.5 W
Lamp Power On TL5 50 W
Power Loss On TL5 3.5 W
Rated Lamp Power On TL5 ECO 49 W
System Power On TL5 ECO 49.5 W
Lamp Power On TL5 ECO 46 W
Power Loss On TL5 ECO 3.6 W
T-Ambient (Max) 60 °C
T-Ambient (Min) -25 °C
T-Storage (Max) 80 °C
T-Storage (Min) –40 °C
T-Case Lifetime 80 °C
T-Case Maximum (Max) 80 °C
T-Ignition (Max) 60 °C
T-Ignition (Min) -25 °C

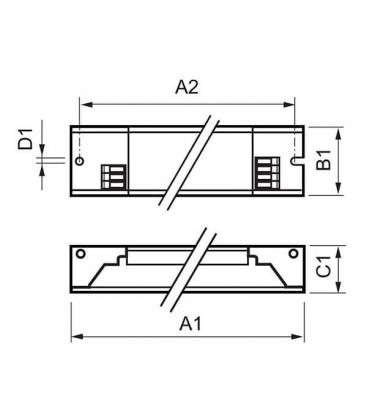

Housing L360 × 30 × 22
Nominal Light Outputut After 60 Seconds 100% of EBLF
Battery Voltage Lamp Ignition 198-254 V
Normal Operating Voltage (DC) 220 - 240 V
Battery Voltage Lamp Operation 176-254 V
Battery Voltage Guaranteed Operation 176 - 275 V
Battery Voltage Guaranteed Ignition 186 - 275 V
Emergency Ballast Lumen Factor (EBLF) 0.7%
Nominal Light Outputut After 5 Seconds 50% of EBLF
HF-Performer III TL5 ballasts offer maximum versatility and meet all of the necessary commercial grade specifications. They also offer the added benefits of lamp striation reduction technology, making these ballasts compatible with energy-saving TL5 ECO lamps. As such, these ballasts are part of an overall high-efficiency lighting system that may help you or your customers to achieve any international or local energy code you need to comply with. HF-Performer III TL5 ballasts are the ideal choice for a broad range of new construction and retrofit applications within the commercial sector, including general surface mounting or office lighting, parking garages, warehouses, waterproof and other applications.

Benefits
• Exceptional energy efficiency with striation-reduction technology in lighting systems at lower temperatures
• Maximum reliability in system operation
• Multi-power technology for precise operation of multiple lamp types of various wattages

Features
• Highest CELMA Energy Efficiency Index A2 BAT
• Complies with CE, ENEC, EL, VDE-EMC, CCC marks of conformity
• Average nominal service lifetime over 100000 hours (at Ta 50 °C) with a failure rate ≤ 0.1% per 1000 hours)
• Optimized lamp preheating for over 50000 On/Off switch operations without replacement of lamps

Applications
• Suitable for DC operation and emergency lighting installations; full compliance with requirements for emergency lighting according to EN 61347-2-3 -annex J
• Extended lamp life in frequent-switching applications, e.g. where occupancy sensors or motion detectors are used
• For luminaires of protection class I and protection class II used in office buildings, hospitals, supermarkets, department stores, industrial premises and schools
